Description

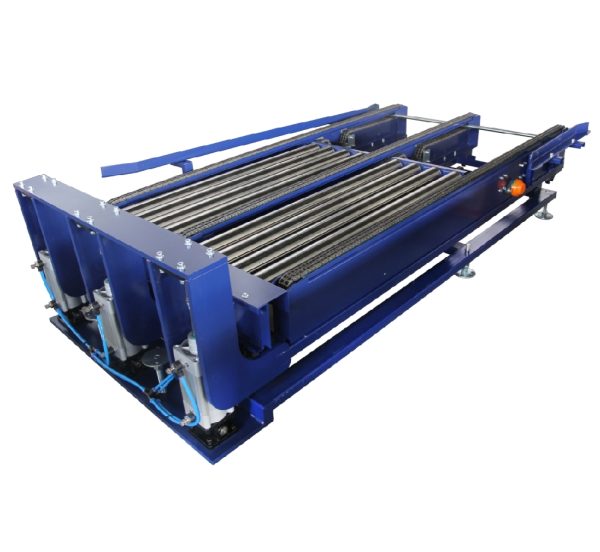

Technical specifications of 90oC direction change conveyor for pallet
Basic information:
Rollers diameter: Ø 76mm.(if roller type)
Axles diameter: Ø 20mm
Chain: 10A-2
Conveyor length: 1500mm (2000mm, 2500mm)
Conveyor width: 1380mm, 1480mm, 1580mm, 1680mm
Can be customized
Conveyor height: 450, 500, 550,650mm Can be customized
Loading weight: 1500 kg
Power: 0.75KW or 1.5KW
Transport speed: Standard 20.1:1 = 18 m/min.other reducers are available. can be selected to meet customer’s requests. Inverter can be used to control speed.
Conveyor material: carbon steel, 304 Stainless steel as option
