INTRODUCTION
Economical wrapping machine saves people and costs

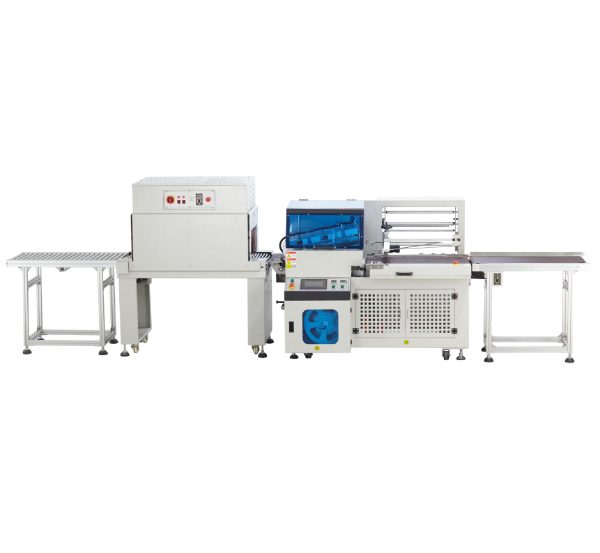

The auto L-shaped sealing, cutting and shrinking packaging machine is an economical sealing and cutting machine specially developed and designed for thin and small products. At the same time, it only needs to manually adjust the film guiding system and the feeding conveying platform, the speed can reach 15-35 Pcs/min, the sealing and cutting line is thin and centered, the packaging effect is flat and beautiful, suitable for products of different widths and heights, widely used in cosmetics , medicine, food, software, beverages, tobacco, daily chemicals, automobiles, cables, electronics and other large-scale products shrink packaging.
CHARACTERISTICS
Firm sealing: The special material of the sealing and non-opening cutter is adopted, and the high temperature resistant surface material of DuPont Teflon is used to ensure that the sealing is cracked;
Photoelectric automatic detection: Two sets of horizontal and vertical photoelectricity are used for easy switching, and packaging can be easily completed for thin or small products;
Convenient adjustment: When the size of the package is changed, manually adjust the adjustment handle without changing the mold and bag maker；
Auto coiling: Equipped with induction motor, automatic coiling material;
Safer: The machine is equipped with a safety cover, and the sealing knife is equipped with an anti-cutting device, which is safer to use.
PARAMETERS
| MODEL | ZKL-4535I | ZKS-4525 |
| Film | POF | POF |
| Packing Speed | 10~35pcs/min | 1-40pcs/min |
| Packing Size | W+H≤380 ，H<100, H+L≤450 ，L≥100 | W≤350,H≤180mm,W+H ≤ 430mm |
| Cutter size / Tunnel size | Cross cutter：450mm Vertical cutter： 555mm | L1000×W450×H250mm |
| Max Temperature | 240℃ | 200°C |
| Electrical | 220V 50/60HZ | 220V/380V 50-60Hz 3 Phase |
| Power | 2.5KW | 10KW |
| Max Current | 6.5A | 18A |
| Air Compressing | 0.6MPa ~0.85MPa | / |
| Table Height | 850~880mm | 850~880mm |
| Machine dimension | L： 1740mm W： 1265mm H： 1310mm | L1320×W775×H1520mm |
| Machine Weight | 300kg | 185kg |
MACHINE DETAILS

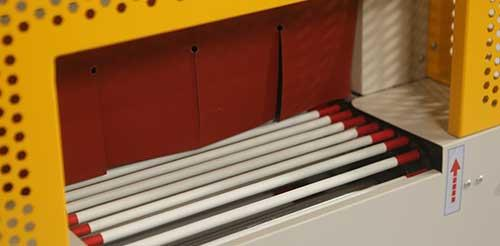

High temperature resistant silicone tube
The furnace cavity is equipped with a number of high temperature resistant silicone tubes, which are heated at a constant temperature and have a long service life.
Waste film device
Equipped with an automatic waste coiling device, controlled by a separate motor, and the waste is easy to disassemble
Siemens PLC
Adopt Siemens PLC program control, stable and durable, equipped with touch screen, easy to operate.

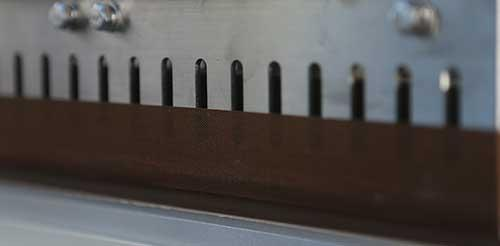

Constant temperature sealing cutter
Constant temperature sealing and cutting knife to ensure that the knife does not have a mucous membrane and no cracks
Simple operation panel
The operation panel interface follows the information at a glance, which is convenient for users to use
Hole punch
Sharp and durable
Conveyor
Durable
Adjustment handle
Adjustable width and height, suitable for a variety of specifications
CONFIGURATION
| Model | Brand |
| Motor | GPG、ESPA |
| PLC | Siemens |
| Thermostat | Omron |
| Time relay | Hequan |
| Photoelectric switch | Panasonic |
| Pneumatic Components | AirTAC |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
