INTRODUCTION
Sealing,cutting,shrinking in one step

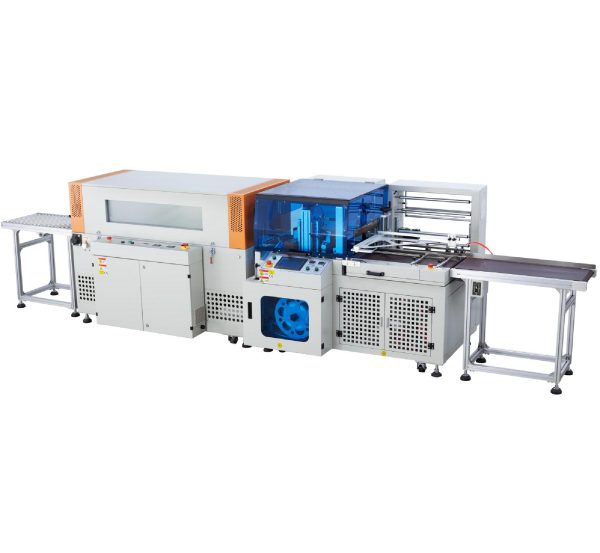

The auto side-sealing shrink packaging machine is a medium-speed automatic sealing, cutting and packaging machine designed for the mass production of cosmetic shrinking. The whole machine is equipped with a PLC program system. Feeding length, automatic film sealing, cutting and shrinking of the product, detection switch controls the motor to automatically rewind the waste film. In order to realize the features of unmanned automatic shrinking, the machine has high working efficiency and is suitable for packaging products of various sizes. It is widely used in cosmetics, aluminum,pipes, printing, photo frames, electronics, daily chemicals, and other mass production industries.
CHARACTERISTICS
Firm sealing: The special material of the sealing and non-opening cutter is adopted, and the high temperature resistant surface material of DuPont Teflon is used to ensure that the sealing is cracked;
Photoelectric automatic detection: Two sets of horizontal and vertical photo-electricity are used for easy switching, and packaging can be easily completed for thin or small products;
Convenient adjustment: When the size of the package is changed, manually adjust the adjustment handle without changing the mold and bag maker；
Auto coiling: Equipped with induction motor, automatic coiling material;
Safer: The machine is equipped with a safety cover, and the sealing knife is equipped with an anti-cutting device, which is safer to use.
PARAMETERS
| MODEL | ZKL-5545CL | ZKS-5030LW |
| Film | POF | POF |
| Packing Speed | 3~35pcs/min | 20~80pcs/min |
| Packing Size | W+H≤400mm ，H≤170mm ，L≥100mm | W≦400mm H≦250mm
W+H≤480mm |
| Cutter size / Tunnel size | Cross cutter： 490mm | L： 1500mm W： 500mm H：300mm |
| Max Temperature | 280℃ | 200°C |
| Electrical | 220V/380V 50/60HZ 3 Phase | 220V/380V 50-60Hz 3 Phase |
| Power | 2.5KW | 16KW |
| Max Current | 6.5A | 25 A |
| Air Compressing | 0.6MPa ~0.85MPa | / |
| Table Height | 850+30mm | 850+30mm |
| Machine dimension | L： 1720mm W： 1415mm H： 1320mm | L： 1850mm W： 1095mm H： 1325mm |
| Machine Weight | 450kg | 650kg |
MACHINE DETAILS
Visual window shrinking machine
With visual window shrinking, the shrinking effect is clear at a glance, which is convenient for users to watch
Waste film device
Equipped with an automatic waste coiling device, controlled by a separate motor, and the waste is easy to disassemble
Siemens PLC
Adopt Siemens PLC program control, stable and durable, equipped with touch screen, easy to operate.
Constant temperature sealing cutter
The cutter is not mucous membrane, does not break, the sealing line is thin and firm
Simple operation panel
The operation panel interface follows the information at a glance, which is convenient for users to use
Hole punch
Sharp and durable
Conveyor
Durable
Adjustment handle
Adjustable width and height, suitable for a variety of specifications
CONFIGURATION
| Model | Brand |
| Motor | GPG、TianYang |
| PLC | Siemens |
| Thermostat | Omron |
| Time relay | Hequan |
| Photoelectric switch | Panasonic |
| Pneumatic Components | AirTAC |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
