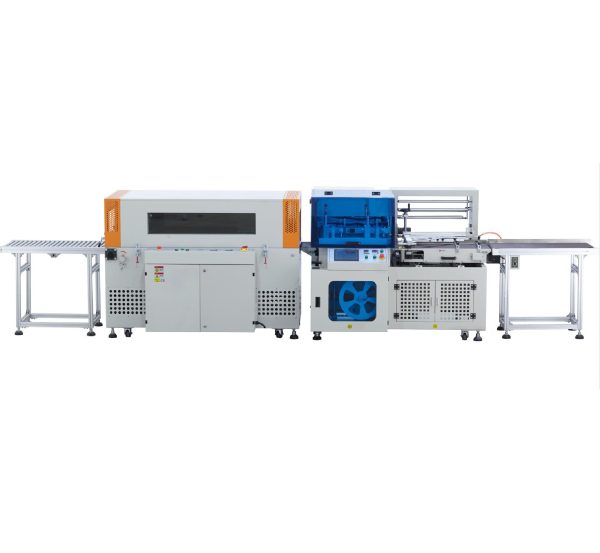

Auto vertical up-down sealing and shrinking packaging machine ZKL-5545DI+ZKS-5030LW

Description

INTRODUCTION

Cylinder control Sealing line thin and centered 40 pcs/min

The auto side sealing shrink packaging machine is a vertical up and down sealing and cutting shrink packaging machine designed for the refined production of cosmetic films. Mainly for high and thin products, it can automatically complete the    steps of feeding, film wrapping, sealing and cutting, shrinking, etc., to ensure that the sealing line is in the middle position, auto film blowing, and the sealing line is thin, suitable for POF film and adhesive film. The heat shrinkable packaging effect is beautiful, smooth and wrinkle-free, no need for personnel to operate, the packaging speed is 5-40 pcs/min, and the work efficiency is high. This sealing and shrinking packaging machine is also suitable for printing, color box, medicine, daily chemical, auto parts, food and other industries.

CHARACTERISTICS

Vertical drive function  The sealing and cutting knife holder is controlled by vertical drive, which can overcome the   problems of wrinkles and the sealing line not in the middle of the product caused by the traditional L-shaped sealing machine;

Self-adjusting height  The height of the seal can be adjusted. When the size of product is changed, the package size can be adjusted by rotating the hand wheel. The adjustment is very simple, and there is no need to change the mold and bag maker;

Controllable film length The feeding length control is combined with the electric sensor and the timer to effectively control the length of the film and save film consumables;

Highly automation  Automatically complete the steps of feeding, film wrapping, sealing and cutting, shrinking, etc., with high automatic program control;

Safe and convenient  The machine panel is simple and easy to operate, and the whole machine is equipped with safety anti-cutting protection and alarm functions, which greatly protects the safety of the operator;

Packaging effect   The sealing line is thin and firm, and the heat shrinkable packaging effect is beautiful, smooth, and wrinkle-free, ensuring that the product is not damaged during storage and transportation.

PARAMETERS

MACHINE DETAILS

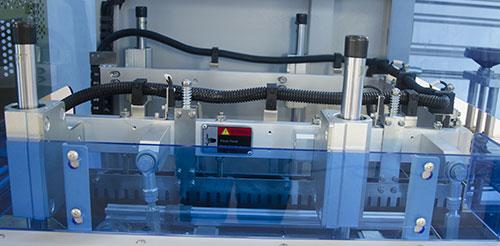

Vertical drive function

The sealing and cutting knife adopts a vertical drive sealing and cutting, which overcomes the problems of wrinkles and the sealing line not in the middle of the product in the traditional L-shaped sealing and cutting machine, so that the shrinkage effect of the product is better

Waste film device

Equipped with an automatic waste coiling device, controlled by a separate motor, and the waste is easy to disassemble

Siemens PLC

Adopt Siemens PLC program control, stable and durable, equipped with touch screen, easy to operate.

Constant temperature sealing ，cutting knife

The surface coating is coated with high temperature resistant and anti-stick material to ensure the sealing line is thin and firm

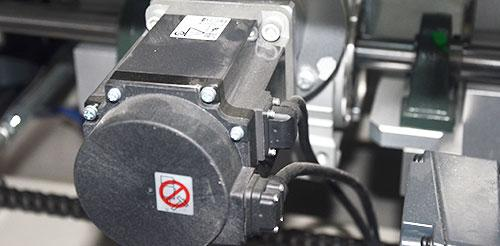

Mitsubishi Servo Motor

To ensure the stable and smooth operation of the machine

Hole punch

Sharp and durable

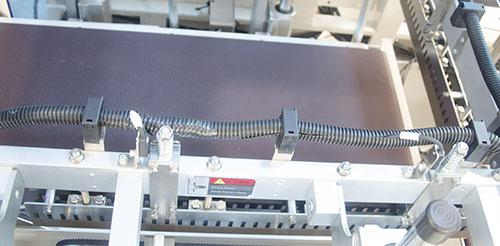

Conveyor

Durable

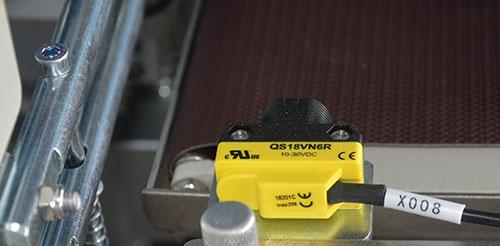

Sensor

Add two sets of horizontal and vertical sensors, which can be easily identified for thin or small packages

Adjustment handle

Adjustable width and height, suitable for a variety of specifications

CONFIGURATION

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
