The automatic carton erector is developed and produced for mass production line. The vertical production speed can reach 18 ctns/min.

Category:

Description

INTRODUCTION

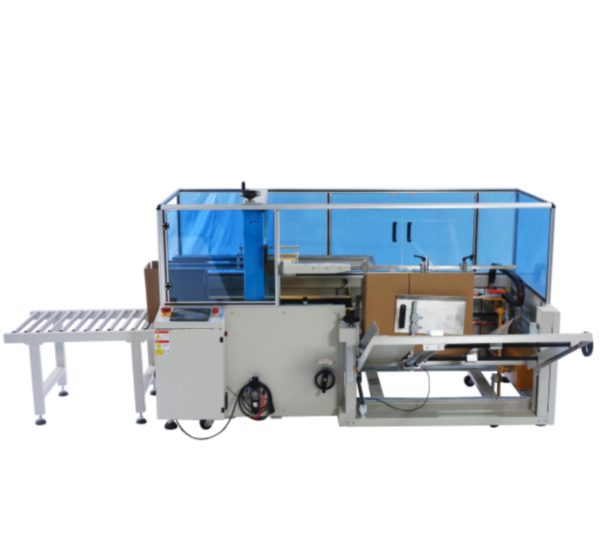

The automatic carton erector is developed and produced for mass production line. The vertical production speed can reach 18 cartons/min. It can draw cartons and form it simultaneously, and the price is  lower than other vertical erector in the same level. This erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

CHARACTERISTICS

Convenient auto-adjustment: Changing the size of the carton can be adjusted manually;

PLC+ man-machine interface: Easy operation, simple maintenance and stable performance;

Convenient unpacking: The bottom of carton is folded and sealed during transportation without stop. The whole process of suction box, forming, bottom folding and sealing can be completed in 3 seconds;

Save manpower:  the unpacking of goods is replaced by machines;

High efficiency: stable unpacking speed, higher efficiency;

Safer: the machine is equipped with safety protection measures, and the operation is more assured;

PARAMETERS

Carton Opening Speed 18 ctns/min
Carton Size L250-450 ×W150-400 × H100-400mm

(The minimum cannot exist at the same time)

Power Supply 220V 50/60Hz 1 Phase
Power 240W
Adhesive Tape Width 48/60/75mm
Carton Storage Quantity 80-100pcs (1000mm)
Air Consumption 500NL/min
Air Compressing 6kg/cm³
Table Height 620+30mm
Machine dimension L2450 ×W2100 × H1450mm
Machine Weight 550Kg

MACHINE DETAILS

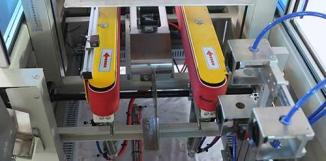

–Durable parts

Using durable parts and electrical components, the accessories have stable performance, strict structural design,and no vibration during operation.

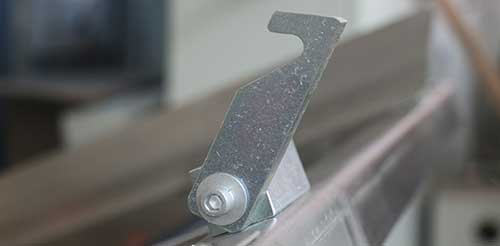

–Push box plate automatic buckle

The cartridge fixing bracket adopts the automatic buckle of the push box plate to lock the cartridge plate, which is convenient for users to use

–Exterior

The total length of the machine is 2450mm, which occupies smaller area. Similar products in the market have relatively large shape, length of more than 3600mm,which cover large area.

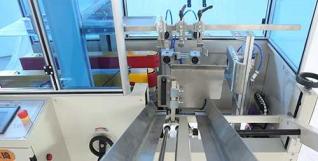

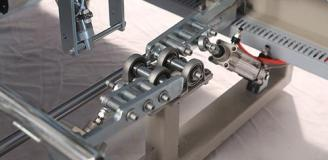

–Precision parts

Tens of thousands of parts aging tests to ensure that every detail is more stable and the failure rate is low.

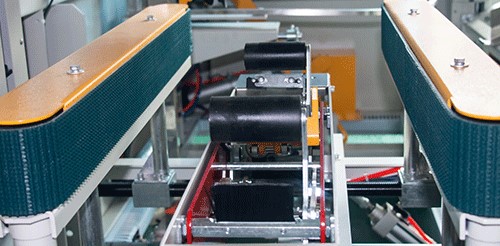

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Use cost-effective power switches, and the service life of key switches can reach 100,000 times.

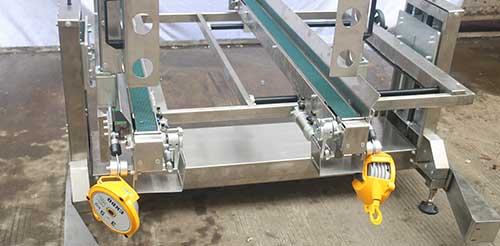

–Horizontal cartridge optional

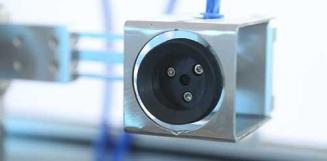

–Suction cups

The suction cup with strong suction force is  used to grasp the carton stably and durable.

CONFIGURATION

Name Brand
Motor GPG
PLC Siemens
Touch Screen MCGS
Pneumatic Components Taiwang AirTAC
Photoelectricity Germeny LEUZE

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
