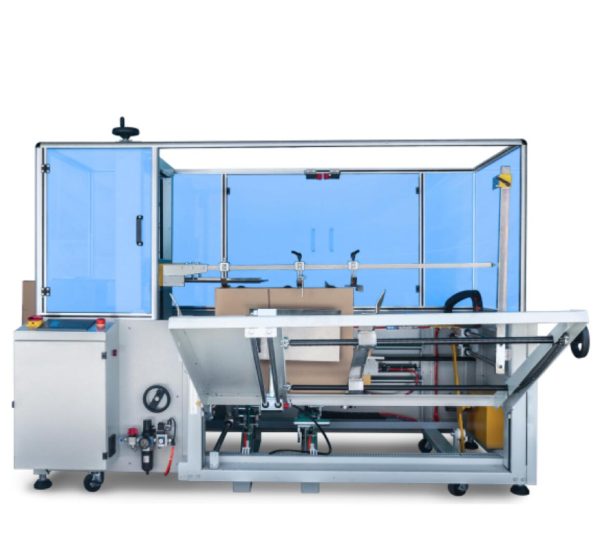

The automatic carton erector is a product independently produced and designed by our company. The vertical erecting speed can reach 10 cartons per minute

Category:

Description

INTRODUCTION

Erecting and Sealing Simultaneously 10ctns/min

The automatic carton erector is a product independently produced and designed by our company. The vertical erecting speed can reach 10 cartons per minute, and the price is lower than other vertical erector in the same level. This cartons erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries

CHARACTERISTICS

Durable parts:  Using durable parts, electrical and pneumatic components.

Matching used available:  Can work independently or be matched with automatic packaging line.

Save time: Vertical storage of cardboard, and carton board can be replenished at any time without downtime.

Saving labor: goods packaging work can be completed by machine instead of manual.

Improve efficiency: Rational design of the bottom sealing machine, simultaneous suction and molding,

simultaneous molding of the folding bottom and sealing at one time, stable producing speed, and higher efficiency.

Safer: Adding a transparent organic glass protective cover, and the door will automatically stop to avoid accidental operation.

PARAMETERS

Carton Opening Speed 8-10 ctns/min
Carton Size L320-650xW200-500xH150-500mm
Power Supply 220V 50/60Hz 1 Phase
Power 240W
Adhesive Tape Width 48/65-72mm 2inch ,3inch
Carton Storage Quantity 80-100pcs (1000mm)
Air Consumption 500NL/min
Air Compressing 6kg/cm³
Table Height 620+30mm
Machine dimension L2350 ×W2100 × H1650mm
Machine Weight 500Kg

MACHINE DETAILS

–Durable parts

Using durable parts and electrical components, the accessories have stable performance, strict structural design,and no vibration during operation.

–Push box plate automatic buckle

The cartridge fixing bracket adopts the automatic buckle of the push box plate to lock the cartridge plate, which is convenient for users to use

–Exterior

The total length of the machine is 2450mm, which occupies smaller area. Similar products in the market have relatively large shape, length of more than 3600mm,which cover large area.

–Precision parts

Tens of thousands of parts aging tests to ensure that every detail is more stable and the failure rate is low.

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Use cost-effective power switches, and the service life of key switches can reach 100,000 times.

–Horizontal cartridge optional

–Suction cups

The suction cup with strong suction force is  used to grasp the carton stably and durable.

CONFIGURATION

Name Brand
Motor GPG
PLC Siemens
Touch Screen MCGS
Pneumatic Components Taiwang AirTAC
Photoelectricity Germeny LEUZE

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
