Description

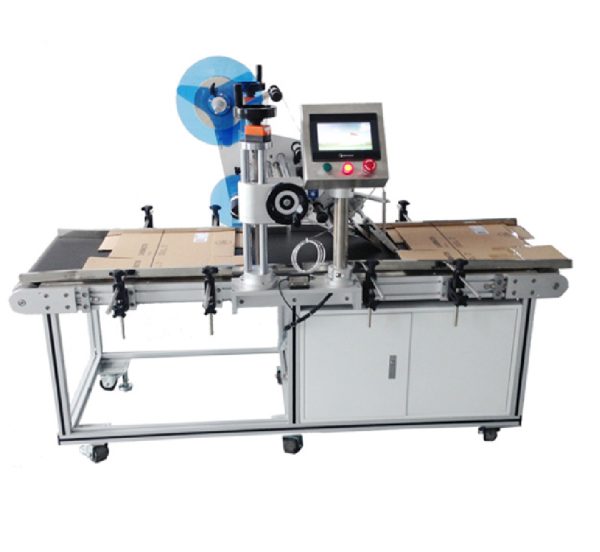

Automatic carton Labeling machine (single head)
Model: ZK-T305
| Labeling accuracy | ±2mm (excluding product and label errors) |
| Labeling speed | 10~25 pieces/min (depending on product and label size) |
| Applicable product size | Length: 200mm ~ 1000mm (customized specifications) |
| Width: 200mm ~ 800mm (customized specifications) | |
| Height: 2mm ~ 8mm | |
| Applicable label size | Length of the label: 20mm to 250mm |
| Width (base paper width) : 20mm ~ 175mm | |
| Overall size | Approx. 4050mm×1250mm×1400mm (length × width × height); (including feeding mechanism and receiving mechanism) |
| Applicable power supply | 220V/50HZ |
| Machine weight | About 300kg |
Basic function
◆ This machine contains a special dividing mechanism for large cartons, which can automatically send cartons to the conveyor belt, saving labor;
◆ Using the gantry header, the span is customized 800mm;
◆ Including large carton receiving frame, carton free fall stacked neatly;
◆ It is used to attach one or two identical labels to various large cartons.
Optional function
◆ Optional transparent label detection eye, suitable for transparent labels;
◆ Optional ribbon coding machine, to print the production date on the label and other functions, coding and labeling synchronous, saving processes.
◆ Barcode printer + computer + software system is available to print barcode and other information to the label online and label online.
◆ Optional ink inkjet printer or laser inkjet printer, to achieve the production date on the product and other functions, inkjet labeling synchronous, saving processes.
◆ Optional customized lifting platform + grab feeding device.
◆ Optional automatic counting belt, the carton according to the set number of stacking, a full pile automatically sent away, continue to stack the next pile without stopping.
