Unmanned sealing L:15-∞ W:15-50cm H:14-50cm .

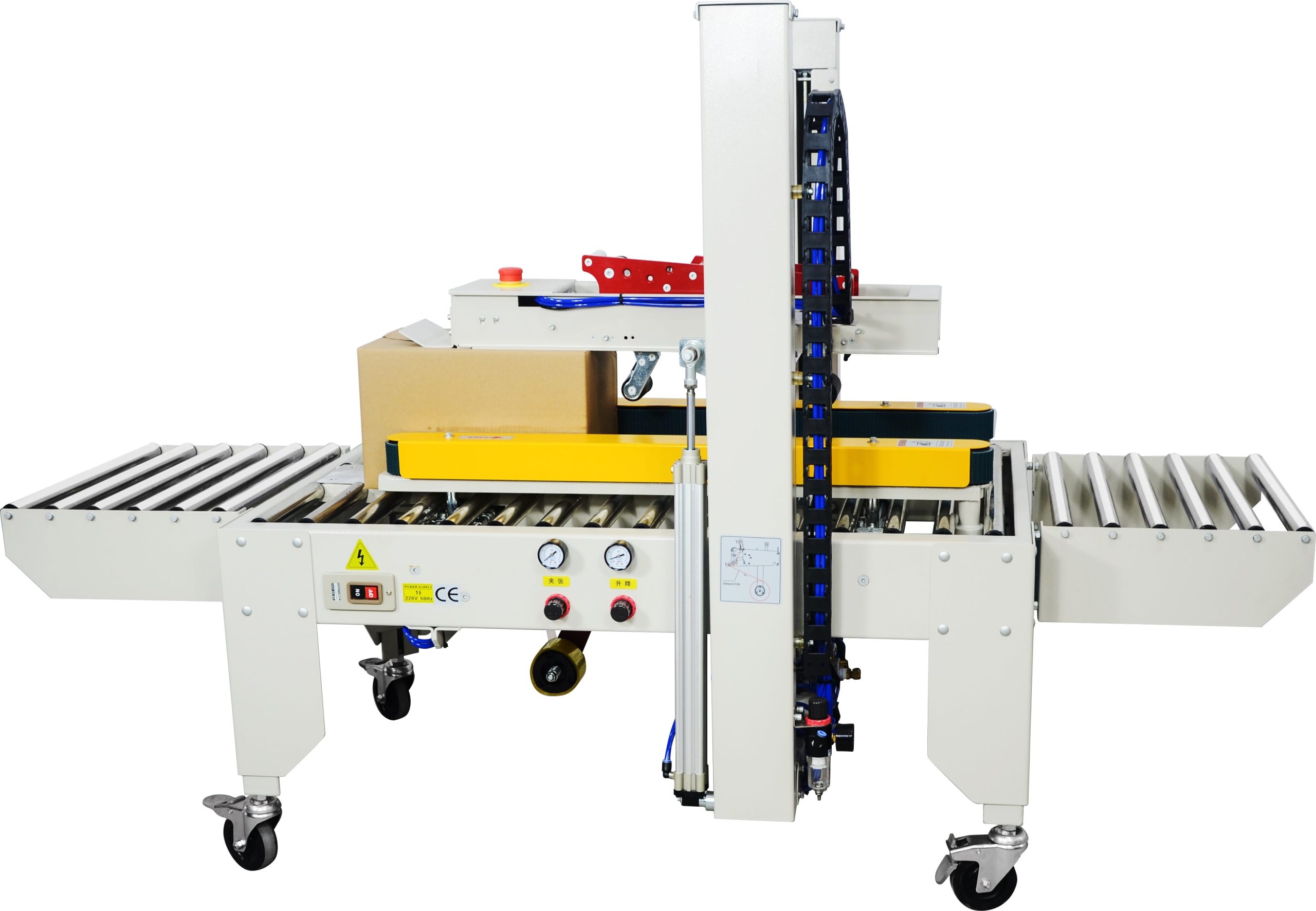

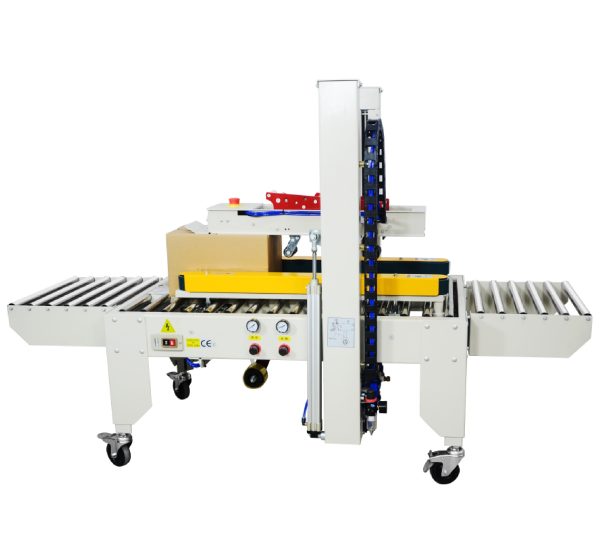

The automatic carton sealer can automatically adjust the width and height according to different carton specifications, and the operation is convenient, simple and fast.

Category:

Description

INTRODUCTION

Unmanned sealing L:15-∞ W:15-50cm H:14-50cm .

The automatic carton sealer can automatically adjust the width and height according to different carton specifications, and the operation is convenient, simple and fast.Up and down fully automatic sealing, with a high degree of automation; single-machine operation, suitable for small batches and multi-specification production. It is sealed with sticky tape, and the sealing effect is smooth, standardized and beautiful; printing tape can also be used, which can improve the image of the product. Widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.

CHARACTERISTICS

Self-adaptive According to the size of the carton, self-adjustment without manual operation.

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Improve efficiency Sable carton sealing speed, higher efficiency;

Simple operation Simple operation panel, economical, durable, safe and low failure rate.

PARAMETERS

Model  ZKE-450
Conveyor speed 18m/min
Carton size  range L:150-∞  W:150-500mm H:140-500mm
Power supply  110/220V 50/60Hz 1Phase
Power  240W
Adhesive Tape Width 48/60/75mmChoose one to use
Air Consumption  200NL/min
Air Compressing 0.6Mpa
Discharge table Height   600+120mm
Machine Dimention   L:1250mm   W:900mm  H:1350mm
Machine weight  170kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

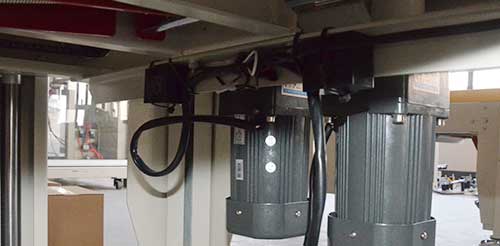

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

–Stainless steel roller

Durable, no rust, good bearing capacity

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.

CONFIGURATION

Name Brand
Motor VTV
Pneumatic Components AirTAC
Limit switch SAFETYMAN

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
