INTRODUCTION
Beverage shrinking Sealing,cutting,shrinking in one step.

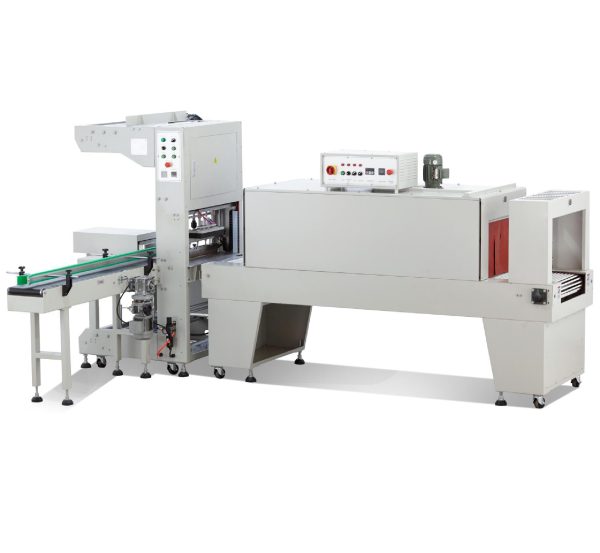

The automatic cuff type shrink packaging machine is a fully automatic PE film shrink packaging machine, automatically organize materials, suitable for automatic shrink packaging of combination products without bottom support, Such as: mineral water, beverages, daily chemical cleaning products and other combined shrink packaging.
CHARACTERISTICS
.Control element Use control elements; the sealing cutter is specially designed, the sealing is firm, does not crack, and does not stick to the cutter;
.Easy to operate The operation is convenient and simple, and the items of different specifications only need to adjust the guide rods on both sides, which is convenient and quick.
.Photoelectric automatic detection Adopt photoelectric automatic detection, automatic positioning, automatic sealing and cutting;
.High automation Automatic feeding, film feeding, sealing and cutting; step-less mechanical speed regulation to adjust the speed of the feeding conveyor belt;
.Small footprint The machine has a compact structure and a small footprint;
.Unlimited package length The length of the package is not limited and can be unlimited.
PARAMETERS
| MODEL | ZKL-6030AH | ZKS-6040 |
| Film | PE | PE |
| Packing speed | 6-18pcs/min | 6-20pcs/min |
| Packing size | W+H<650mm ，H<350mm | W≦500 mm ，H≦300 mm |
| Cutter size/Tunnel size | 700mm | L:1800 mm W：600 mm H：400 mm |
| Max temperature | 220°C | 220°C |
| Electrical | 220V/380V 50-60Hz 3 Phase | 220V/380V 50-60Hz 3 Phase |
| Power | 2KW | 20KW |
| Max current | 6.0A | 32A |
| Air compressing | 5.5-8.5kg/cm³ | ⁄ |
| Table height | 850+30mm | 850+30mm |
| Machine dimensions | L：2675 mm W： 1350 mm H：2000 mm | L：2730 mm W：980 mm H： 1710 mm |
| Machine weight | 465kg | 600kg |
MACHINE DETAILS
Safety cut
Use the automatic sensing of the electric sensor to prevent other objects other than the film from being cut by mistake
Simple operate panel
The panel design is concise and clear, which is convenient for the operator to use and adjust.
Pressure regulating plate
Equipped with a pressure regulating plate, which is convenient for users to use at any time.
Customization
Automatic feeding device can be designed according to different bottle types
Constant temperature sealing cutter
The sealing cutter is coated with high temperature resistant material, the cutter is not mucous membrane, does not break, and the sealing line is thin and firm
Adjustable rods
Different products just need adjust the both side of guide rods ，simple and convenient operation.
Conveyor
Durable
CONFIGURATION
| Motor | GPG |
| PLC | Siemens |
| Fan | ESPA |
| Touch screen | Kunlun |
| Inverter | Mitsubishi/Delta |
| Thermostat | Omron |
| Time relay | Omron |
| Photoelectric switch | America Banner |
| Pneumatic Components | AirTAC |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
