Description
INTRODUCTION
Pneumatic folding flaps sealing 480 cartons/h

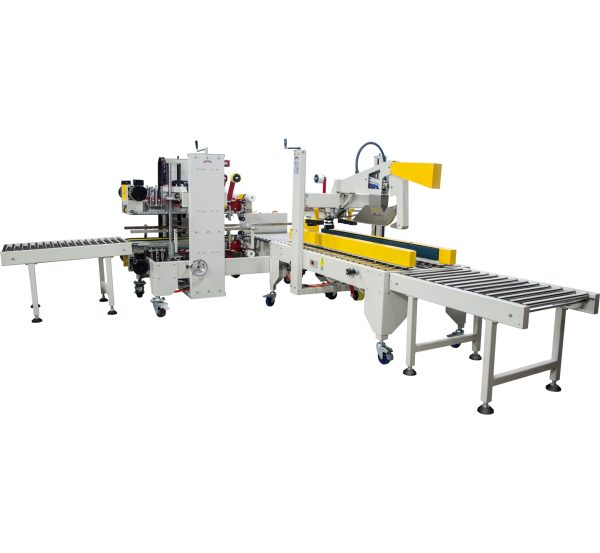

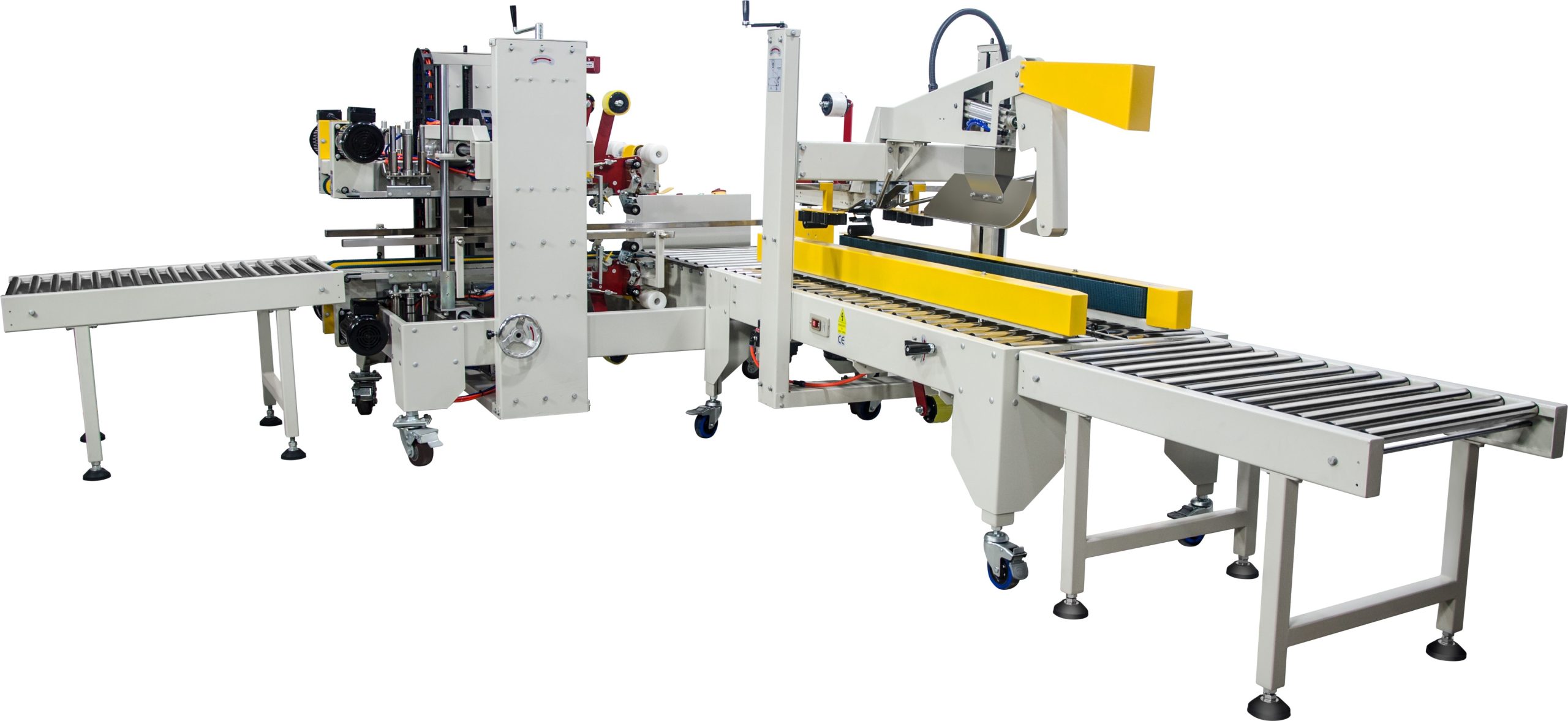

It is composed of an automatic folding flaps sealer and an automatic corner edge case sealer online to form an H-shaped box sealing machine. The top flaps can be automatically folded, and the carton can be conveyed. It is fast and stable when sealing the carton. At the same time, the carton is sealed up and down. When sealing the box, the middle seam is concentrated and not cracked; then it is pushed through the L-shaped carton pusher and transported into the four-corner edge sealing operation. The height of the table and the width and height of the carton can be adjusted independently, which is simple and practical. The parts are stable and durable, the shape is elegant and generous, and the service life is long. The machine frame comes with four high-strength brake casters , which is very convenient for transposition work. Widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
CHARACTERISTICS
Adjusting height and width Manually adjust the width and height of the machine according to the carton specifications, suitable for carton sealing of the same specification at the same time；
Carton sealing beautiful Pneumatic sealing, fast and beautiful；
Save labor The sealing operation of the goods is completed by the machine instead of the labor;
Improve efficiency Sable carton sealing speed, higher efficiency;
High efficiency Belt drive, sealing speed up to 20 cases/min；
Simple operation Simple operation panel, economical, durable, safe and low failure rate.
PARAMETERS
| Model | ZKC-450D | ZKG-450 |
| Conveyor speed
/carton sealing speed |
18m/min | 360-480pcs/h |
| Carton size range | L:200-600mm W:150-500mm H:150-500mm | L:320-600mm W:200-500mm H:180-500mm |
| Power supply | 110/220V 50/60Hz 1Phase | 110/220V 50/60Hz 1Phase |
| Power | 400W | 1050W |
| Adhesive Tape Width | 48/60/75mm（Choose one to use） | 48/60/75mm（Choose one to use） |
| Air Consumption | 50NL/min | 200NL/min |
| Air Compressing | 0.6Mpa | 0.6Mpa |
| Discharge table Height | 600+120mm | 600+50mm |
| Machine Dimention | L:1770mm W:850mm H:1520mm | L:1900mm W:1230mm H:1530mm |
| Machine weight | 250kg | 400kg |
MACHINE DETAILS
–Quick Load Tape Design
The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable and smooth operation of the whole machine.

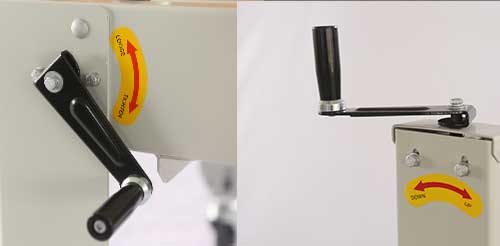

–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
–Cylinder control
AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.

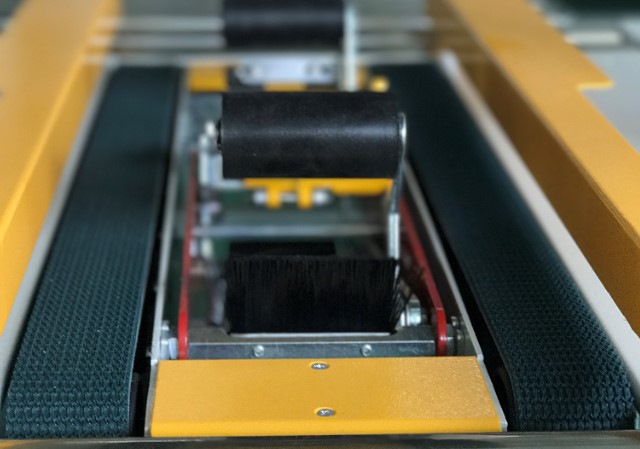

–Durable conveyor belt
The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

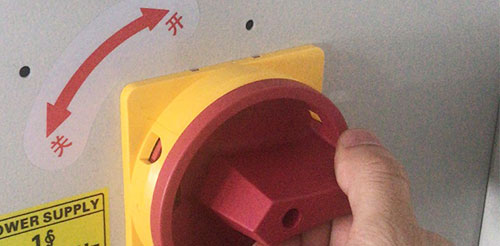

–Switch
Use cost-effective power switches, and the service life of key switches can reach 100,000 times.
–Scale ruler
Equipped with a height scale, convenient adjustment.
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
CONFIGURATION
| Name | Brand |
| Motor | GPG |
| Pneumatic Components | AirTAC |
| PLC | OMRON |
| Photoelectricity | LEUZE |
| Limit switch | SAFETYMAN |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
