The automatic straight-feed cuff packaging machine is a straight-feed automatic cuff-type packaging machine designed and produced according to market demand and years of technical experience. The machine has a compact structure and a small footprint. Unmanned packaging, suitable for single item packaging or bottom tray item packaging.

Category:

Description

INTRODUCTION

Special for carton outer film of small household appliances.

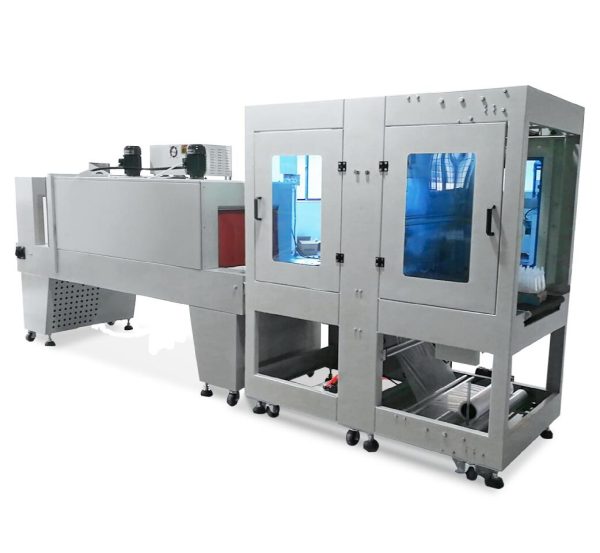

The automatic straight-feed cuff packaging machine is a straight-feed automatic cuff-type packaging machine designed and produced according to market demand and years of technical experience. The machine has a compact structure and a small footprint. Unmanned packaging, suitable for single item packaging or bottom tray item packaging. This packaging machine is suitable for export moisture-proof packaging of small household appliances, such as: electric fans, microwave ovens, ovens and other outer boxes shrink packaging.

CHARACTERISTICS

.Control element   Use control elements; the sealing cutter is specially designed, the sealing is firm, does not crack, and does not stick to the cutter;

.Easy to operate The operation is convenient and simple, and the items of different specifications only need to adjust the guide rods on both sides, which is convenient and quick.

.Photoelectric automatic detection  Adopt photoelectric automatic detection, automatic positioning, automatic sealing and cutting;

.High automation Automatic feeding, film feeding, sealing and cutting; step-less mechanical speed regulation to adjust the speed of the feeding conveyor belt;

.Small footprint  The machine has a compact structure and a small footprint;

.Unlimited package length  The length of the package is not limited and can be unlimited.

PARAMETERS

MODEL ZKL-6030Z ZKS-6040
Film PE PE
Packing speed 8-20pcs/min 6-20pcs/min
Packing size W+H ≤650 mm W≦500 mm *  H≦300 mm
Cutter size/Tunnel size 700mm L 1800 mm    W:600 mm    H:400 mm
Max temperature 220°C 220°C
Electrical 220V/380V 50-60Hz 3 Phase 220V/380V 50-60Hz 3 Phase
Power 2.5KW 20KW
Max current 6.0A 32A
Air compressing 5.5-8.5kg/cm³
Table height 850+30mm 850+30mm
Machine dimensions L: 1720 mm  W: 1140 mm    H:2000 mm L:2730 mm   W:980 mm   H: 1710 mm
Machine weight 465kg 600kg

MACHINE DETAILS

Safety cut

Use the automatic sensing of the electric sensor to prevent other   objects other than the film from  being cut by mistake

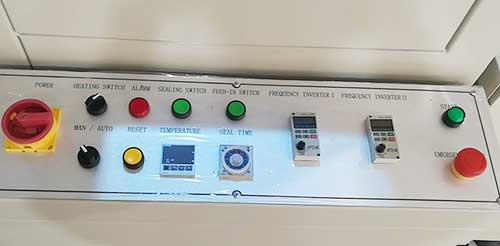

Simple operate panel

The panel design is concise and clear, which is convenient for the operator to use and adjust.

Pressure regulating plate

Equipped with a pressure regulating plate, which is convenient for users   to use at any time.

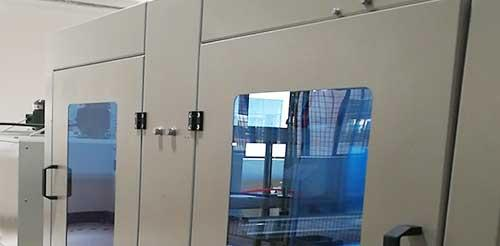

Safety door

When open the door ,the warn  light will alarm ,and protect the users’ safe

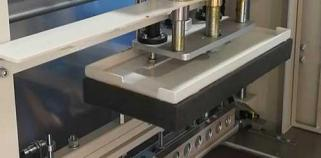

Constant temperature sealing cutter

The sealing cutter is coated with high temperature resistant material, the cutter is not mucous membrane, does not break, and the sealing line is thin  and firm

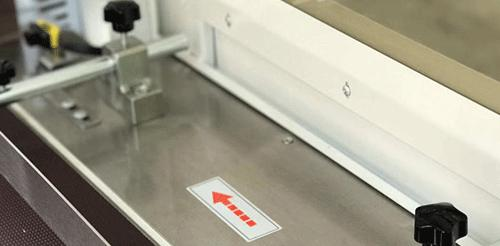

Adjustable rods

Different products just need adjust the both side of guide rods ,simple and convenient operation.

Conveyor

Durable

CONFIGURATION

Motor GPG
PLC Siemens
Fan ESPA
Touch screen Kunlun
Inverter Mitsubishi/Delta
Thermostat Omron
Time relay Omron
Photoelectric switch America Banner
Pneumatic Components AirTAC

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
