Description

ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

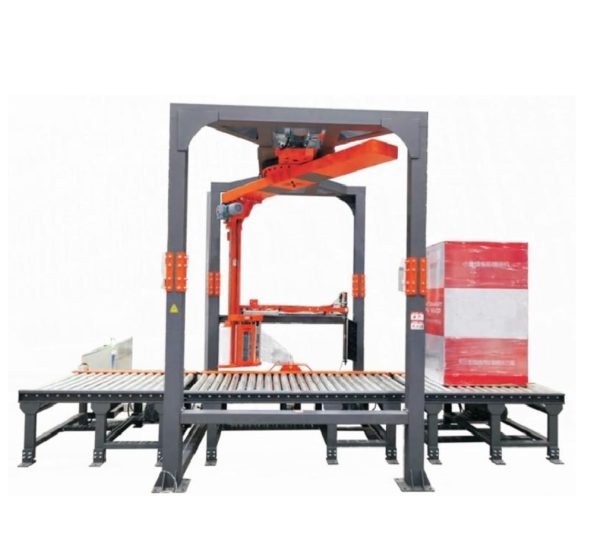

ZK-PS-1000R with pre-stretch system and is suitable for heavy pallet connecting with packing line.

Machine features:



  • CE certification
  • It is developed for packing line.
  • Suitable for heavy pallet
  • The machine must work with conveyors
  • Unmanned operation can be realized with automatic film connecting, film cuttingand film welding function
  • High wrapping speed
  • Solid structure, stable operationand long service life
  • PLC control andLCD text controller with easy using operation interface and reliable performance quality
  • It can preset wrap-mode,parameter and film tension as needed
  • Sensor detection for object height
  • Black object is in need of a special sensor and special travel switch
  • Inverter controlsworking speed
  • Soft start and stop function marks machine operation in a stable condition
  • High efficiency and energy saving
  • Easy maintenance



Basic information:



Power voltage: 3P AC380V 50/60HZ 2.5KW

Air pressure: 0.4~0.6 MPa

Rotary speed : 0~20r/min (adjustable)

Roller diameter: Φ1700 mm

Wrapping height: H=2000mm (can be customized)

Effective object length : 400~1800mm

Film: LLDPE film, width≤500mm

Outer diameter≤280mm

Capacity weight: 1500kg

Machine size:  L3000 xW2000 xH3100mm

G.W/N.W: 1200kg/1100kg

Noise: ≤75DB

Environment humidity: ≤ 98%

Temperature: -10~40oC



Working process:



  1. Put the object on the conveyor
  2. Transfer the object to the wrapping area
  3. Use the film-clamping device to clamp the film
  4. Start the machineand the rotary arm will wrap the object automatically
  5. When the wrapping is finished, the film will be cut automatically
