Description

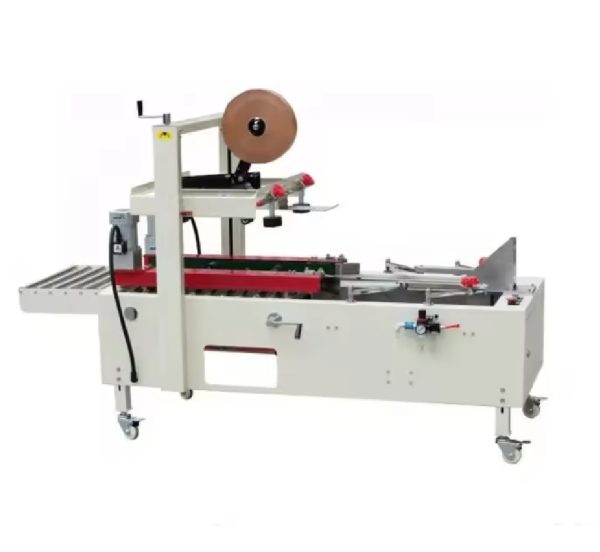

This machine is used to automatically seal carton with pressure-sensitive adhesive tape like PVC and BOPP. It is used for the carton in regular shape. Carton sealer can be customized according to customers’ requirements so as to meet different customers’ needs. The machine has been widely used in the food industry, chemical fiber, pharmacy, publish, air conditioning, household appliance, ceramics, hot work and so on.

Machine features:



  • Semi automatic case erector  is integrated, push carton by cylinder
  • Manual adjustment for different cartons’width and height
  • Side belts drive
  • Bottom flaps at the inlet can be folded easily (as a working table)
  • Automatically convey and seal carton top and bottom at the same
  • High efficiency and energy saving
  • Easy maintenance



Basic information



Power supply: 1P 110V/220V 50HZ/60HZ 400W

Machine dimensions: L1720×W820×H 1450 mm

Machine weight: 180kg

Table height: 630~750mm (adjustable)

Convey speed: 16m/min

Carton dimensions: L (200~500) ×W (150~450) ×H (120~570) mm

Adhesive tape spec: 36mm,48mm,50mm,60mm

Adhesive tape material: Kraft paper, or, BOPP

Air pressure: 4~6kgf/cm2

Contactor: France Schneider

Pushbutton switch: France Schneider

Working noise: ≤75DB (A)

Surroundings: humidity≤90%, temperature 0~40 oC

Optional parts:

A: Truckles

B: Q304/Q201 stainless steel

C: safety guard
