Description

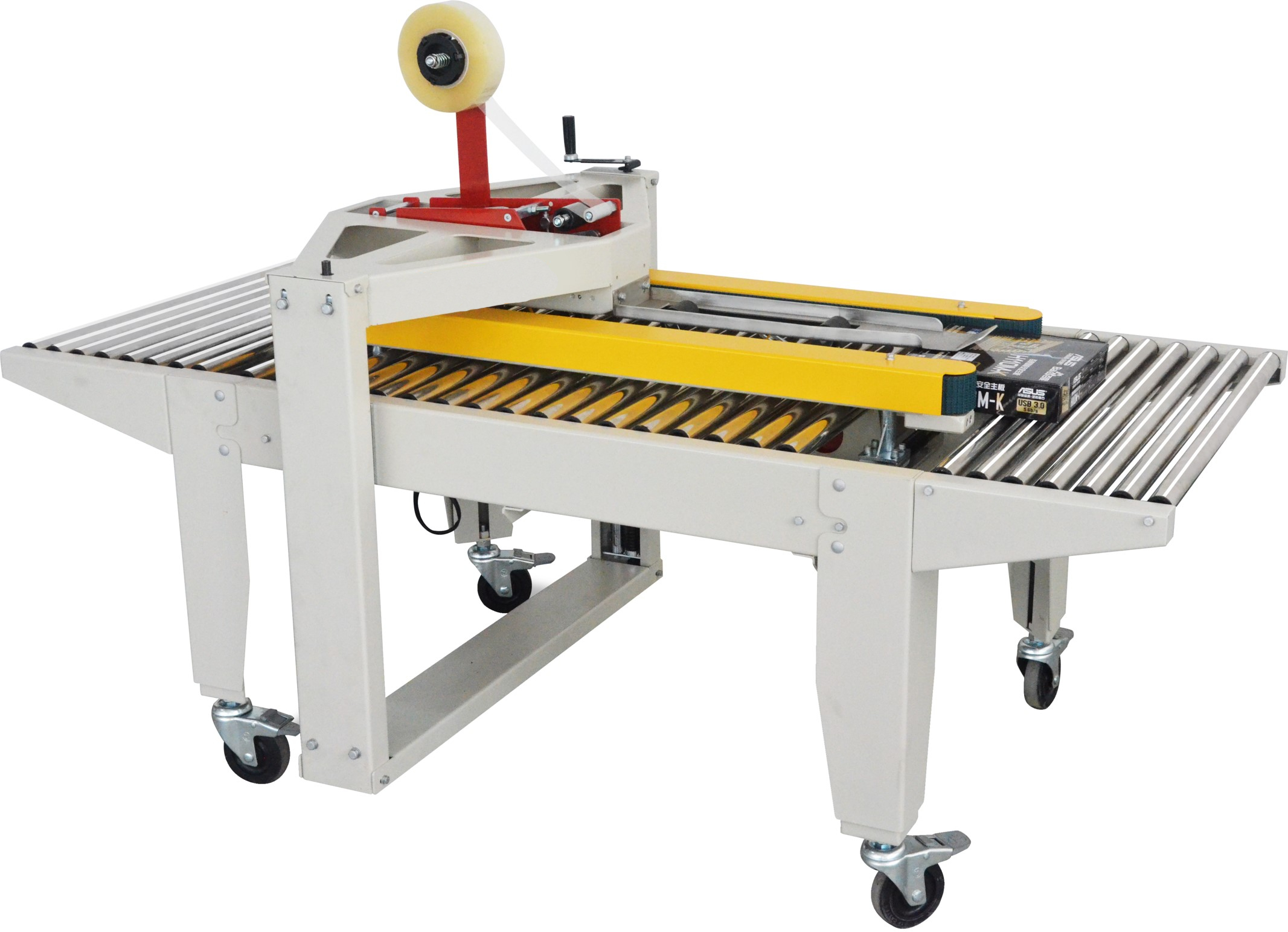

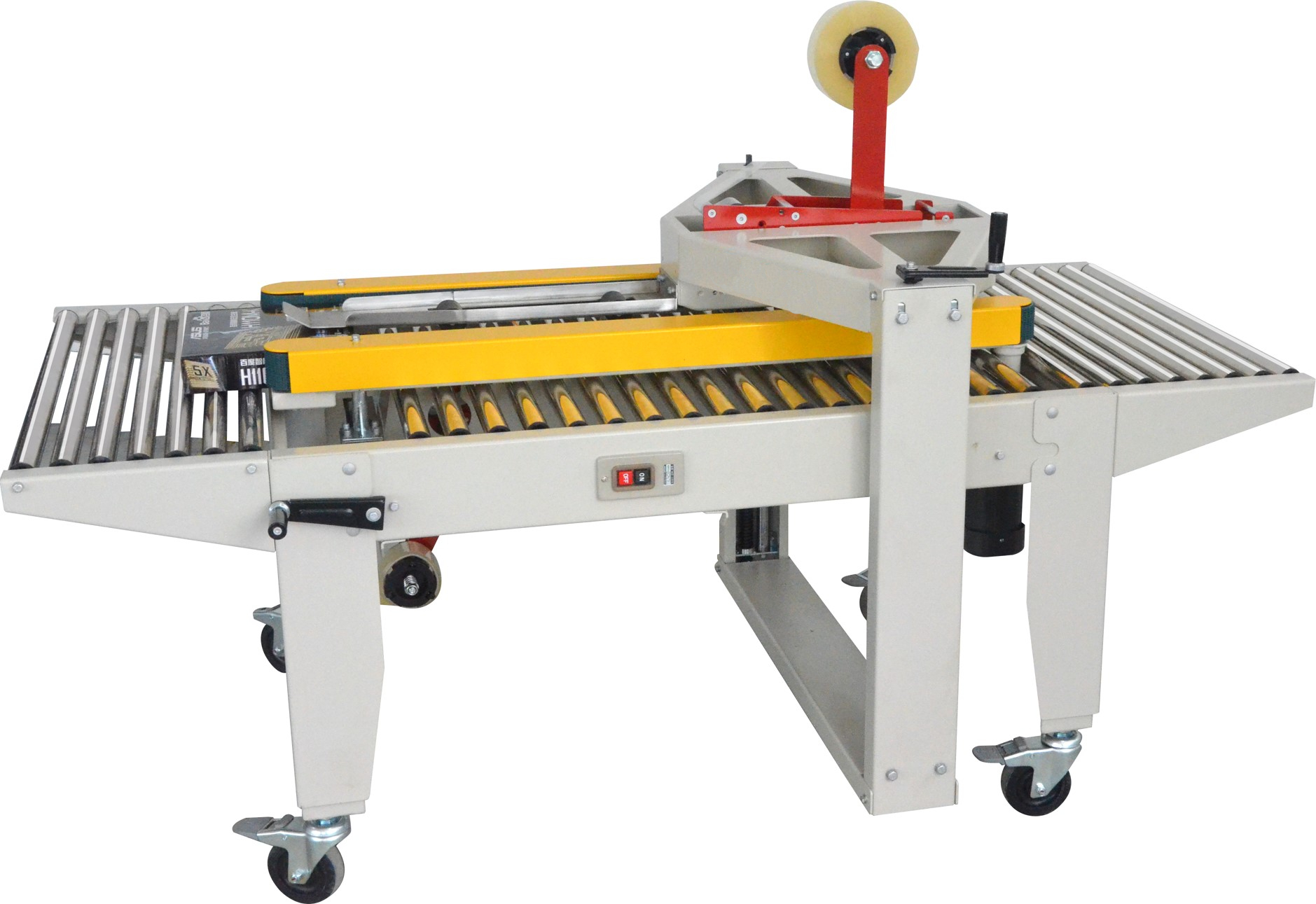

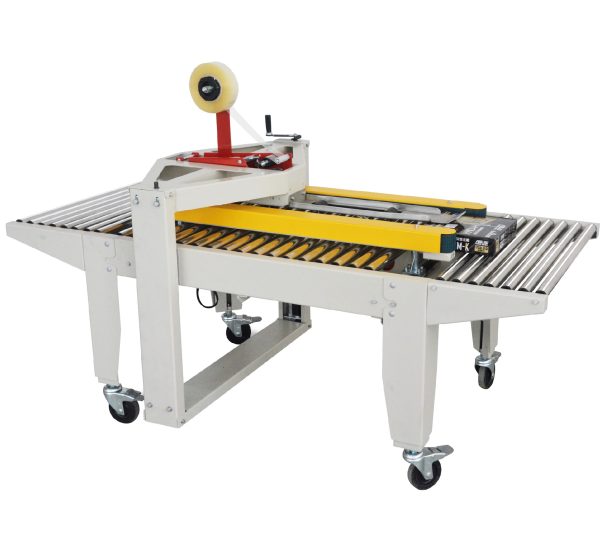

INTRODUCTION
The e-commerce aircraft case carton sealer is a machine specially designed for e-cormerce industry to quickly sealing aircraft case. Sealing speed can be 20 cartons/min. It is driven by belts on both sides, the polygonal design device stabilizes the tape head base, automatically seals the bottom and top of the carton, supports the sealing of carton size of 1-13, prevents bad packaging effects such as warping cartons and tape seal crooked etc,and the sealing effect is smooth and beautiful. At the same time, the width and height can be adjusted manually according to the specifications of the carton, and the operation is simple and convenient. Not only can it solve the problem of a large number of packages and slow packaging in the peak season of e-commerce, but also does not require any maintenance, and can be used after power on. It can be used as a single machine or integrated with packing line.
CHARACTERISTICS
–Suitable for small cartons Aircraft case carton sealer specially designed for e-commerce industry, support for carton size 1-13；
–High efficiency Driven by belts，polygonal design device stabilizes the tape head base, sealing speed can be 20 cartons/min；
–Save labor Sealing operation of the goods is completed by the machine；
–Simple adjustment Width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient；
–More safety The machine is equipped with safety protection measures, and the operation is more assured.
PARAMETERS
| Model: ZKA-430F | Parameters |
| Carton sealing Speed | 20 cartons/min |
| Carton Size range | L130-L∞，w80-400,H45-400mm
H>45mm，W>140mm |
| Power Supply | 220V 50/60Hz ，1Phase |
| Power | 240W |
| Adhesive Tape Width | 48mm |
| Discharge table Height | 600-720 mm |
| Machine Size | L980*W735*870(Without front and rear roller racks) |
| Machine Weight | 120Kg |
MACHINE DETAILS

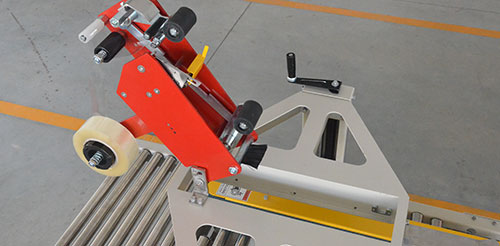

–Quick Load Tape Design
Change design of the traditional tape head base, just need to grasp the tape arm, you can easily remove the tape head, and the tape can be quickly installed in 5 seconds, the operation is simple and convenient.
–Tape head staggered design
Meet a variety of flat carton and aircraft carton sealing, user-friendly

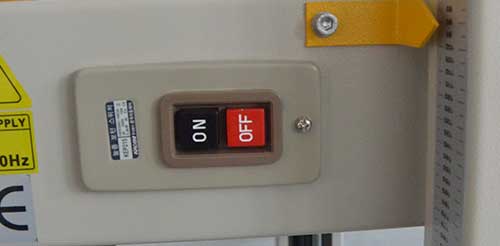

–Switch
Use cost-effective power switches, and the service life of key switches can reach 100,000 times.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable, keep the whole machine transport smooth and fast, accessories stable and durable.
Suitable for the aircraft carton size 1-13
Right and left driven aircraft box carton sealer specially designed for e-cormerce industry, support for carton size 1-13；
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

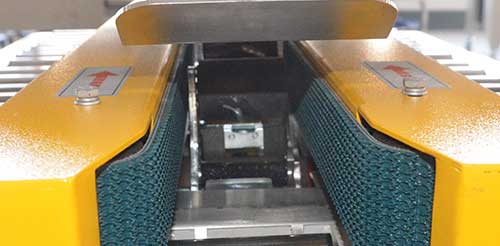

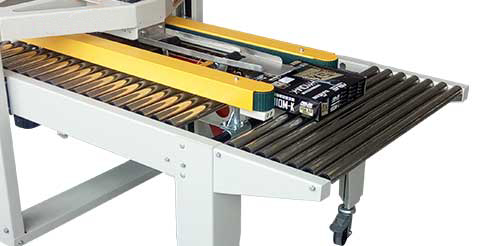

–Entry with added rollers for small carton, conveying more smoothly
The entrance is designed and installed with small rollers, which is not only conducive to the transportation of small cartons, running smoothly, but also has better bearing capacity
