Description
INTRODUCTION

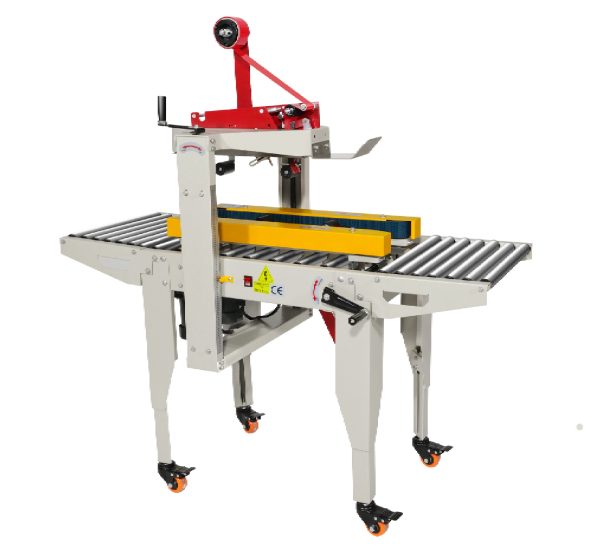

The e-commerce carton sealer is a machine specially designed for the e-commerce industry to quickly seal small cartons, with a sealing speed of 20 cartons/min. It is driven by belts on both sides, the polygonal design device stabilizes the tape head base, automatically seals the bottom and top of the carton, supports the sealing of carton size of 1-12, prevents bad packaging effects such as warping cartons and tape seal crooked etc, and the sealing effect is smooth and beautiful. At the same time, the width and height can be adjusted manually according to the specifications of the carton, and the operation is simple and convenient. Not only can it solve the problem of a large number of packages and slow packaging in the peak season of e-commerce, but also does not require any maintenance, and can be used after power on.
CHARACTERISTICS
–Suitable for small cartons It specially designed for the e-commerce industry，supports of carton size 1-12；
–High efficiency Driven by belts on both sides, the polygonal design device stabilizes the tape head base，sealing speed can be 20 cartons/min；
–Save labor Sealing operation of the goods is completed by the machine instead of the labor;
–Simple adjustment Width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient；
–More safety The machine is equipped with safety protection measures, and the operation is more assured.
PARAMETERS
| Model: ZKA-430 | Parameters |
| Carton sealing Speed | 20 cartons/min |
| Conveyor speed | 21 m/min |
| Carton Size Range | L:130 mm-L∞, W:80-300 mm, H:90-400 mm |
| Power Supply | 220V 50/60Hz, 1Phase |
| Power | 240 W |
| Adhesive Tape Width | 48 mm |
| Discharge table height | 600-720 mm |
| Machine Size | L:710mm W:600mm H:870mm (Without front and rear roller racks) |
| Machine Weight | 90Kg |

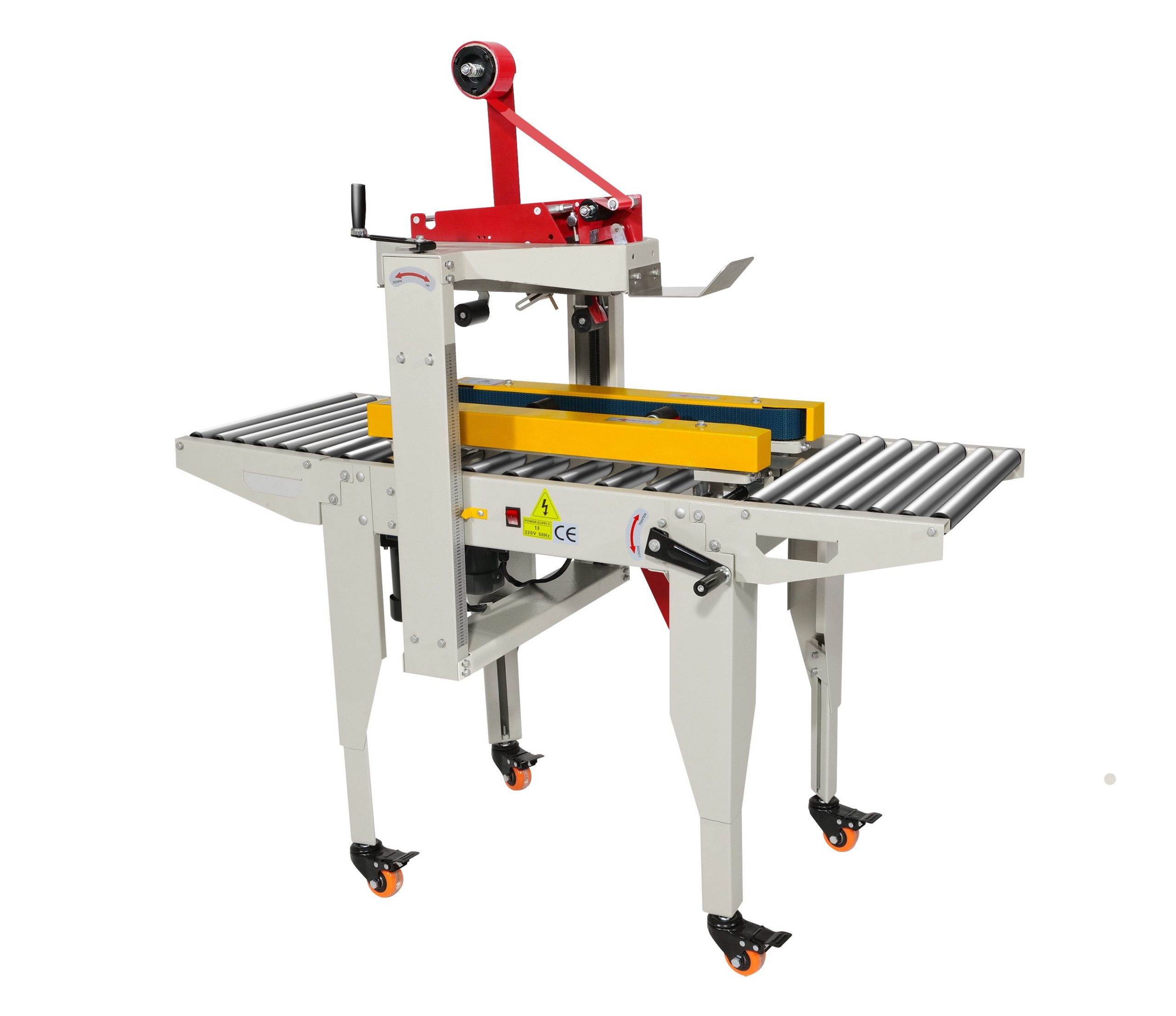

MACHINE DETAILS
–Quick Load Tape Design
Change design of the traditional tape head base, just need to grasp the tape arm, you can easily remove the tape head, and the tape can be quickly installed in 5 seconds, the operation is simple and convenient.
–Switch
Use cost-effective power switches, and the service life of key switches can reach 100,000 times.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable, keep the whole machine transport smooth and fast, accessories stable and durable.
–Suitable for postal carton size 1-12
Driven carton sealer specially developed for the e-commerce industry, suitable for postal carton size 1-12.
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
–Entry with added rollers for small carton, conveying more smoothly
The entrance is designed and installed with small rollers, which is not only conducive to the transportation of small cartons, running smoothly, but also has better bearing capacity
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
