Description
INTRODUCTION
For cartons’ four sides and corners sealing, Moisture-proof Dust-proof Anti-oxidation

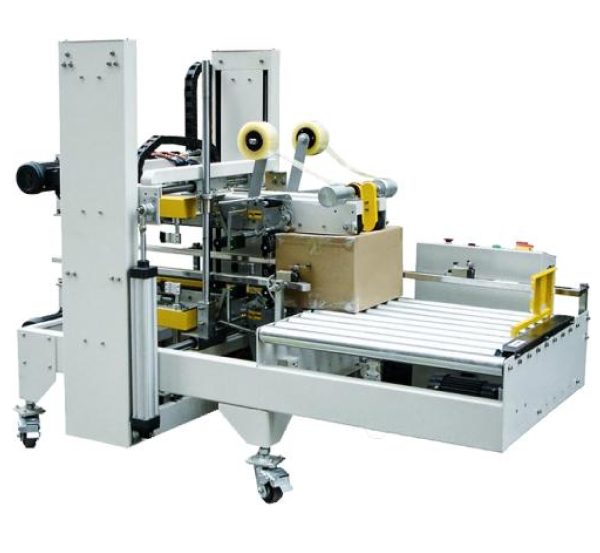

After the in-line shape is sealed by the in-line box sealing machine , it is pushed through the L-shaped corner , transported into the carton , and then sealed at the four corners . There is no need for manual adjustment when adjusting the size of the carton. The electric eye automatically senses and the cylinder automatically moves to adjust the size of the carton intelligently. The upper and lower drive belts are automatically corrected and conveyed to the carton . The height of the table and the width of the carton can be adjusted by themselves , which is simple and practical. The fuselage comes with four high-strength brake wheels, which are convenient for transposition work. The parts are stable and durable and have a long service life. Widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.
CHARACTERISTICS
Automatically adjust the width and height of the machine according to the carton specifications, without manual operation, convenient and fast.
Carton sealing beautiful Pneumatic sealing, fast and beautiful；
Save labor The sealing operation of the goods is completed by the machine instead of the labor;
Improve efficiency Sable carton sealing speed, higher efficiency;
Simple operation Simple operation panel, economical, durable, safe and low failure rate.
Cutter Safety system to prevent hands form stabbed by the cutter.
PARAMETERS
| Sealing speed | 300-360Pcs/h |
| Carton size | Length：320-600mm Width：200-500mm Height：180-500mm |
| Power supply | 110/220V 50/60Hz 1Phase |
| Power | 1050W |
| Tape size | 48/60/75mm |
| Air consumption | 400NL/min |
| Atmospheric pressure | 0.6Mpa |
| Table size | 600+50mm |
| Machine size | Length：2100mm Width：1300mm Height：1580mm |
| Weight | 450kg |
MACHINE DETAILS
–Quick Load Tape Design
The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable and smooth operation of the whole machine.
–Stainless steel roller
Durable, no rust, good bearing capacity
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
–Cylinder control
AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.
–Switch
Choose a cost-effective power switch, one-key start, easy to identify.
–Scale ruler
Equipped with a height scale, convenient adjustment.
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
| Name | Brand |
| Motor | VTV、 GPG |
| PLC | Siemens |
| Pneumatic Components | AirTAC |
