Unmanned operation

Length: 25-60cm  Width: 15-50cm  Height: 18-50cm

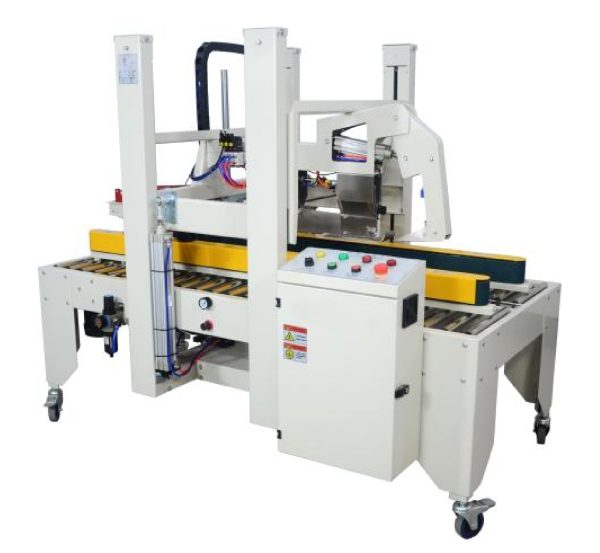

Automatic folding cover and sealing machine The upper cover of the carton is automatically folded in, beautiful, and can be used with the automatic packaging machinery series .

Category:

Description

INTRODUCTION

Unmanned operation

Length: 25-60cm  Width: 15-50cm  Height: 18-50cm

Automatic folding cover and sealing machine The upper cover of the carton is automatically folded in, beautiful, and can be used with the automatic packaging machinery series . Low cost , no need for manual operation , and standardized packaging. This folding and sealing machine is widely used in food , medicine , beverages , tobacco , daily chemicals ,automobiles, cables, electronics and other industries.

CHARACTERISTICS

Adjusting height and width Manually adjust the width and height of the machine according to the carton specifications, suitable for carton sealing of the same specification at the same time;

Carton sealing beautiful Pneumatic sealing, fast and beautiful;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Improve efficiency Sable carton sealing speed, higher efficiency;

Simple operation Simple operation panel, economical, durable, safe and low failure rate.

PARAMETERS

Sealing speed 0-25m/min
Carton size Length :250-600mm  Width :150-500mm  Height:180-500mm
Power supply 110/220V 50/60Hz 1Phase
Power 450W
Tape size 48/60/75mm
Air consumption 300NL/min
Atmospheric pressure 0.6Mpa
Table size 600+150mm
Machine size Length :1900mm  Width :1150mm   Height:1520mm
Weight 300kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

–Stainless steel roller

Durable, no rust, good bearing capacity

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

–Cylinder control

AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
