Description
INTRODUCTION
Suitable for opening multi-size small cartons 20 cartons/min.

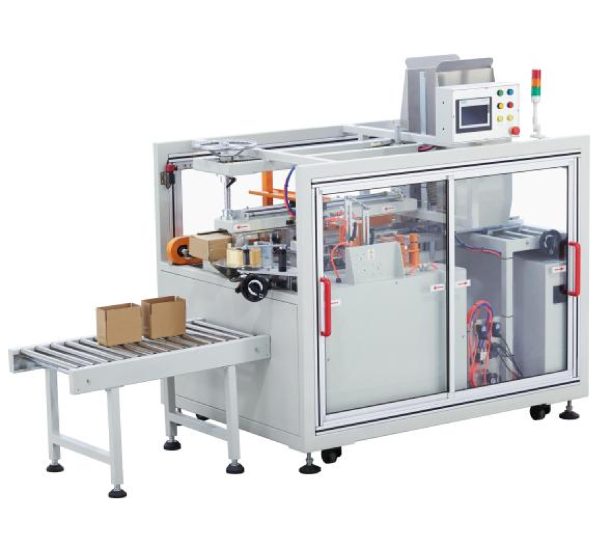

ZKK-30H20 E-commerce high-speed unpacking machine is a horizontal rapid prototyping machine for small cartons specially designed for the e-commerce industry.Suction box ,forming , bottom folding and bottom sealing are completed at one time, and the unpacking speed is 20 cartons per minute.
It can solve the problem of a large number of packaging and slow packaging in the peak season of e-commerce. At the same time, it does not require any maintenance, and it can be used as long as it is powered on.
CHARACTERISTICS
Suitable for small cartons: A small carton packing specially developed for the e-commerce industry, suitable for cartons No. 6- 12;
Flexible: Optional front and rear conveying table,weighing machine,sorter,including front-end labeling machine and back- end baler,etc.,easy to expand,strong versatility;
Save manpower: the unpacking of goods is replaced by machines;
High efficiency: stable unpacking speed, higher efficiency；
Safer: the machine is equipped with safety protection measures, and the operation is more assured;
PARAMETERS
| Model | ZKK-30H20 |
| Sealing speed | 20cartons/min |
| Carton size | Length： 130-280mm Width ：80-200mm Height： 80-200mm |
| Power supply | 220V 50/60Hz 1 Phase |
| Power | 1000W |
| Tape size | 48mm ，2 inch |
| Carton size | 600mm |
| Air consumption | 300NL/min |
| Atmospheric pressure | 6-8kg/cm³ |
| Table size | 900+30 mm |
| Machine size | Length： 1680mm Width： 1210mm Height： 1750mm |
| Weight | 700Kg |
MACHINE DETAILS

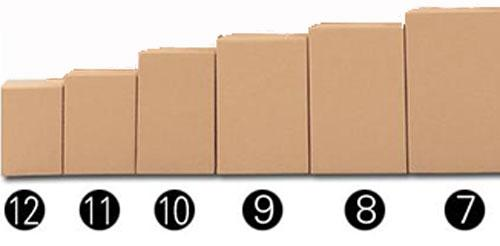

Multi-specification small carton
A small carton unpacking machine specially developed for the e-commerce industry, supporting a maximum size of
280mm*200mm*200mm and a minimum size.

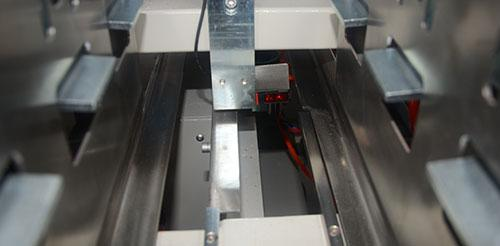

Double gear
The double-gear mechanism design is adopted. Compared with the traditional pin-in method, the carton has a larger bearing capacity and is more stable when taking out the carton. The carton stock can reach 600mm

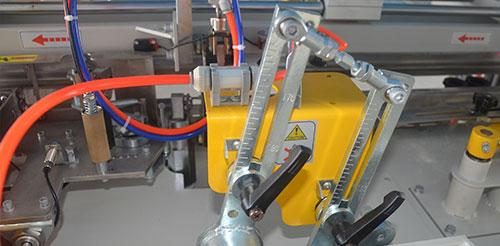

Fold mechanism
Adopt double-link double-swing arm, folding front and rear cover mechanism design, the carton is formed quickly, the action is light, the unpacking is smooth, and the carton forming rate is high.

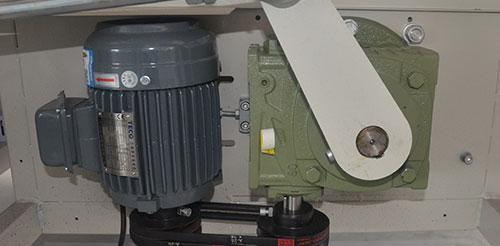

High performance motor
The stable, powerful and durable motor is selected, which can work quickly and efficiently without interruption, with strong stability.

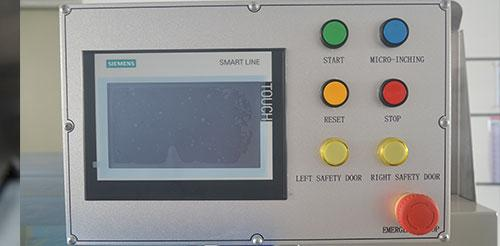

Man-machine interface
The Siemens PLC control program is selected, and the operation interface is simple, which is convenient for the operator to input data and adjust.

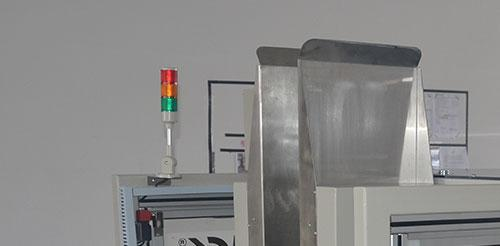

Alarm prompt function
With tape and carton out of material alarm function, no material is automatically reminded, which is convenient for operators to add materials in time.

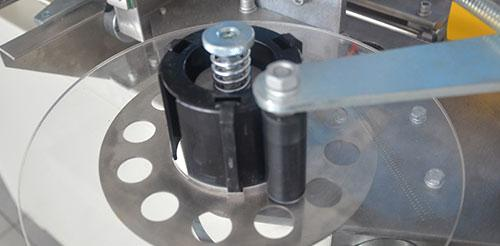

Disc Torque Multiplier
For carton is light and small in size. The suction cup structure is designed with a disc torque multiplier, which can absorb the carton forming process and use less force to improve the efficiency of carton forming.
CONFIGURATION
| Name | Brand |
| Low Voltage Appliances | Schneider |
| PLC | Siemens |
| Touchscreen | Siemens |
| Pneumatic Components | AirTAC |
| Photoelectric | Leuze |
| Mechanical valve | SMC |
| Cylinder | AirTAC |
| Vacuum components | SMC、 Meta Design |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
