INTRODUCTION

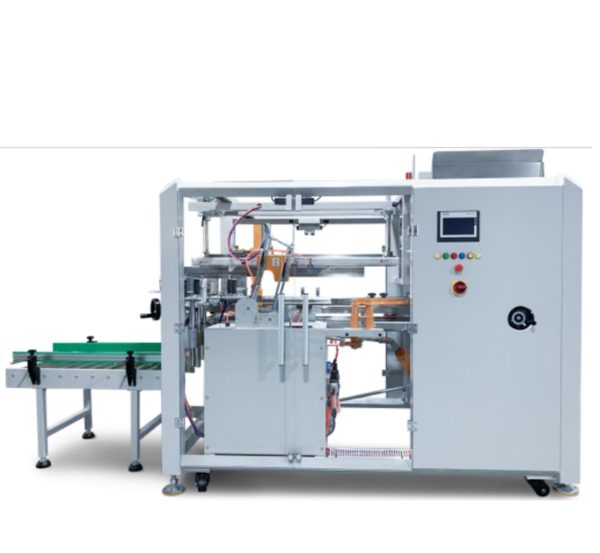

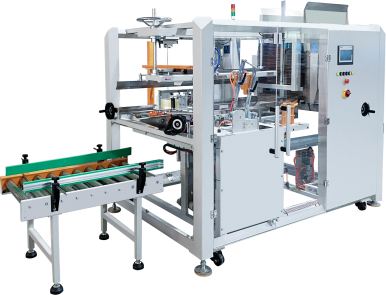

The high-speed carton erector is designed and produced based on many years of practical experience. The cam drive system and the connecting rod are used to control the entire machine, leading to fast, precise and stable motion. The horizontal erector producing speed can reach 30 ctns/min. The machine is easy to operate and adjust which is widely used in warehousing, e-commerce, printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other mass production industries.
CHARACTERISTICS
Durable parts: Using durable parts, electrical and pneumatic components. According to many years of practical experience and technology, the machine can be in stable production.
Automatic warning alarm: Automatic warning alarm.
Safer: Add a transparent organic glass protective cover, and the door will automatically stop to avoid accidental operation.
High speed: Unpacking and bottom sealing can be completed at one time in horizontal forming, and the speed can reach 30 ctns/min.
Flexible expansion: Can be used with automatic packaging lines.
PARAMETERS
| Model Parameters | |
| Carton Opening Speed | 30 ctns/min |
| Carton Size | L240-510xW190-400xH120-400mm
（220≤W/2+H≤570, L+W≤870） |
| Power Supply | 220V 50HZ 1 Phase |
| Power | 1000W |
| Adhesive Tape Width | 48/ 60mm 2 inch ,2.5 inch |
| Carton Storage Quantity | 80pcs (800mm) |
| Air Consumption | 300NL/min |
| Air Compressing | 6kg/cm³ |
| Table Height | 960~1000mm |
| Machine dimension | L2120xW1410xH1900mm |
| Machine Weight | 1000Kg |
MACHINE DETAILS
Available for multiple size of cartons
Minimum size is 240mm.
Double gear
The double-gear mechanism design is adopted. Compared with the traditional pin-in method, the carton has a larger bearing capacity and is more stable when taking out the carton. The carton stock can reach 600mm
Fold mechanism
Adopt double-link double-swing arm, folding front and rear cover mechanism design, the carton is formed quickly, the action is light, the unpacking is smooth, and the carton forming rate is high.
High performance motor
The stable, powerful and durable motor is selected, which can work quickly and efficiently without interruption, with strong stability.
Man-machine interface
The Siemens PLC control program is selected, and the operation interface is simple, which is convenient for the operator to input data and adjust.
Alarm prompt function
With tape and carton out of material alarm function, no material is automatically reminded, which is convenient for operators to add materials in time.
Carton forming mechanism
Because of light and thin carton, the carton forming mechanism adopts suction cup and imitated manipulator design, which is convenient to use less force to improve the efficiency of rapid
carton forming in the process.
CONFIGURATION
| Name | Brand |
| Low Voltage Appliances | Schneider |
| PLC | Siemens |
| Touchscreen | Siemens |
| Pneumatic Components | AirTAC |
| Photoelectric | Leuze |
| Mechanical valve | SMC |
| Cylinder | AirTAC |
| Vacuum components | SMC、 Meta Design |
Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
