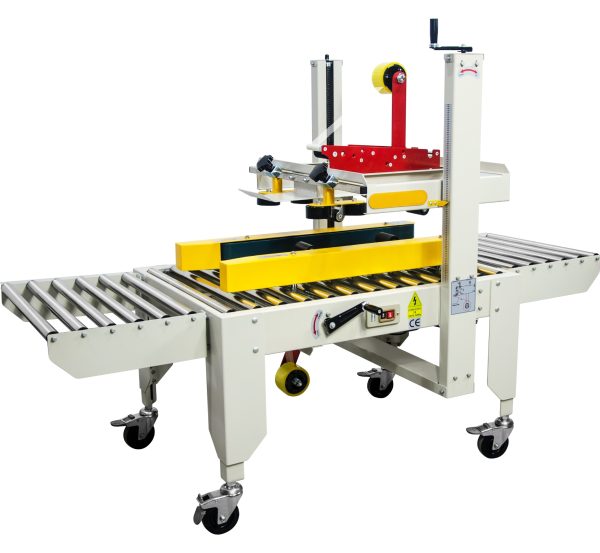

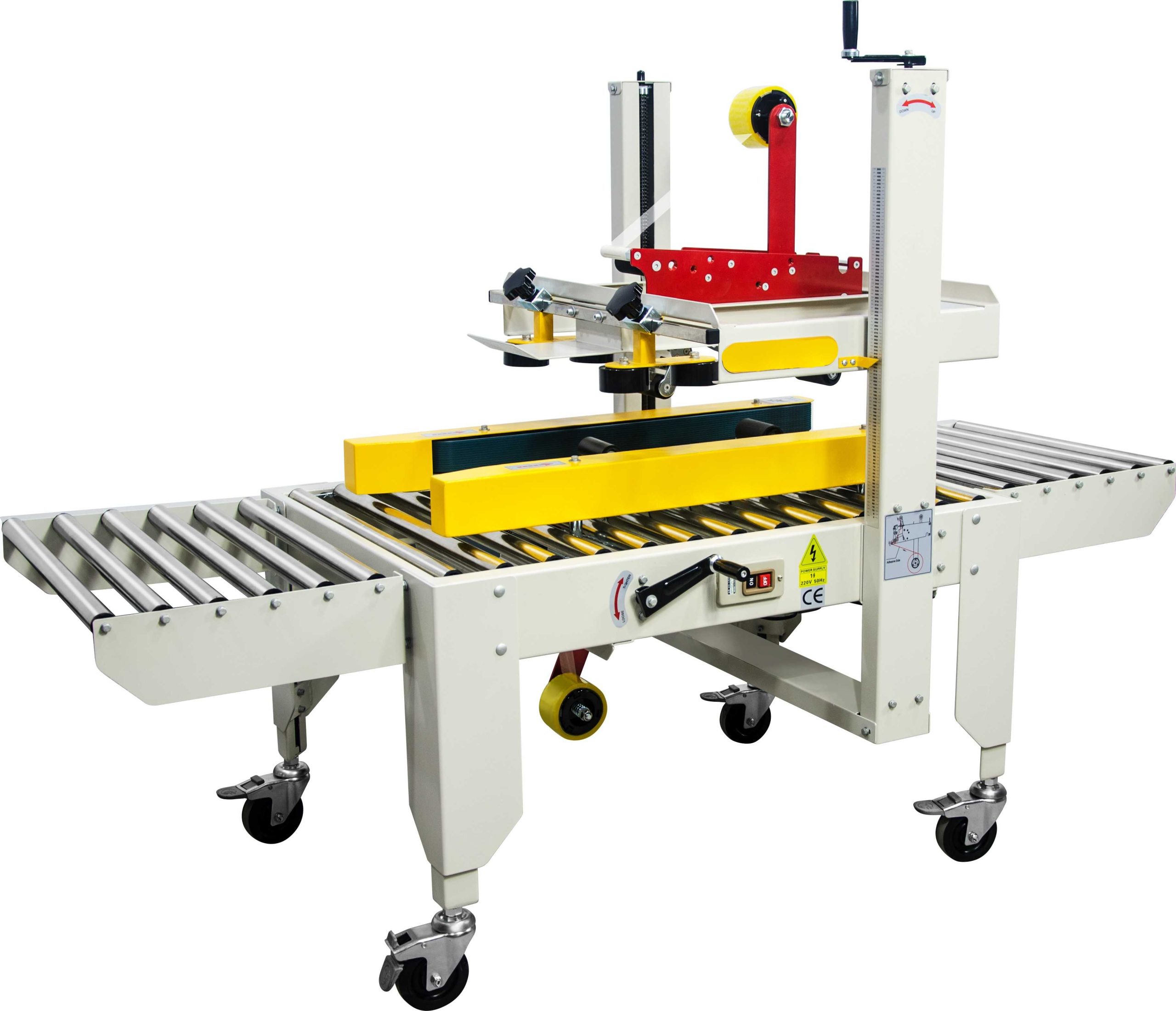

Description
INTRODUCTION
Driven by belts on both sides, it is sealed with sticky tape, and the top and bottom sealing is fast and stable, and the sealing effect is smooth, standardized and beautiful. The width and height can be adjusted manually according to the specifications of the carton, which is simple and convenient. This sealing machine is widely used in food, medicine, toys, tobacco, daily chemicals, electronics and other industries.
CHARACTERISTICS
Suitable for light, high cartons The left and right belt driven carton sealer specially developed for large cartons solves the problems of carton warping and tape sticking skew;
High efficiency Belt drive, sealing speed up to 20 cartons/min;
Save labor The sealing operation of the goods is completed by the machine instead of the labor;
Simple adjustment The width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient;
More safety The machine is equipped with safety protection measures, and the operation is more assured.
PARAMETERS
Model | ZKA-450E |
Conveyor speed | 18m/min |
Carton size range | L150-unlimitedxW150-500xH110-500 |
Power supply | 220V 50/60HZ 1 Phase |
Power | 240W |
Adhesive Tape Width | 48/60/75mm(Choose one to use) |
Discharge table Height | 600+120mm |
Machine Dimention | L:850mm W:850mm H:1350mm (Without front and rear roller racks) |
Machine weight | 125kg |
MACHINE DETAILS

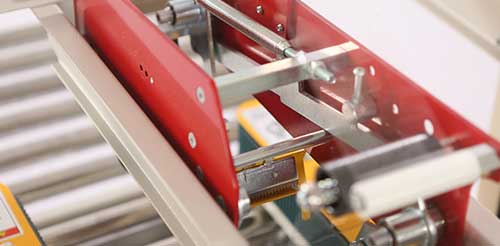

–Quick Load Tape Design
The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

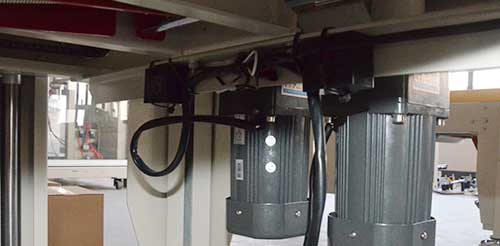

–Featured configuration, stable and durable
Selected powerful motor to ensure stable and smooth operation of the whole machine.
–Support more specification carton
A side-belt drive case sealer specially developed for big carton with multi-size ,carton length is unlimited

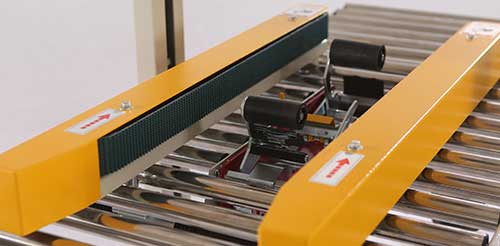

–Durable conveyor belt
The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

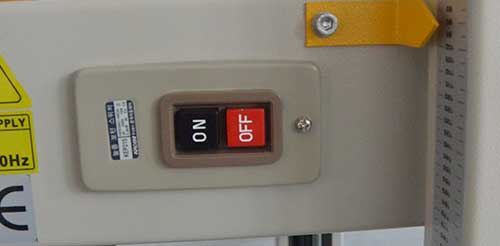

–Switch
Choose a cost-effective power switch, one-key start, easy to identify.
–Scale ruler
Equipped with a height scale, convenient adjustment.

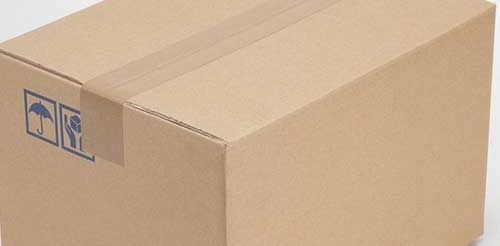

–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
