Description
ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

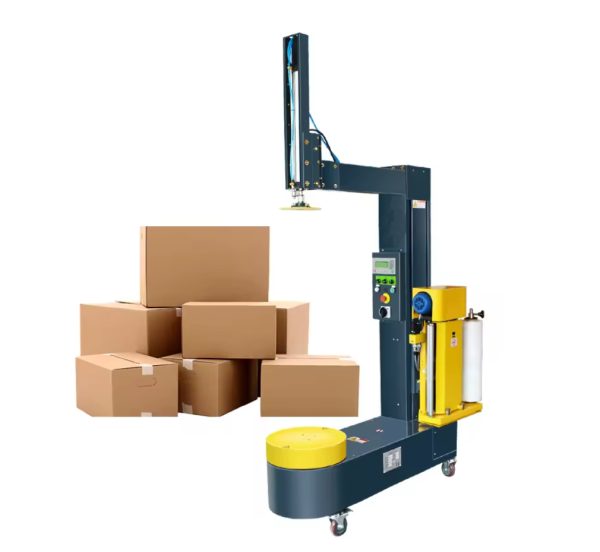

ZK-PS-05M is mainly designed to wrap light small and medium size objects
Machine features:
- PCBand Text controller with easy using operation interface and reliable performance quality
- It can preset wrap-mode, parameterand film tension as needed
- Suitable for wrapping light carton
- The film can be adsorbed on the surface of the object uniformlyby pre-stretch unit, so the film can be saved effectively
- Inverter controlsworking speed
- Top presser to hold object stably
- Soft start and stop functionmarks machine operation in a stable condition
- High efficiency and energy saving
- Easymaintenance
Basic information:
Power voltage: 1P AC220V/110V 50/60Hz 0.5KW
Speed of turnplate: 0~20r/min
Air consumption: 0.7m3/h
Table height: 650mm
Dia.of turnplate: Φ400mm
Wrapping height: 400 ~500 mm or 500 ~ 650 mm
Film: LLDPE film, width≤500mm,
Outer diameter≤280mm
Capacity weight: 80kg
Packing size: L1340 x W580 x H1650mm
G.W/N.W: 110kg/100kg
Noise: ≤75DB
Environment humidity: ≤ 98%
Temperature: -10~40oC
Working process:
- Put the object on the turnplateand press the object with top presser
- Connect film with the surface of the object
- Start the machine, the machine will automaticallywrap around the object
- After the wrapping operationis finished, take away the object
