Description
ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

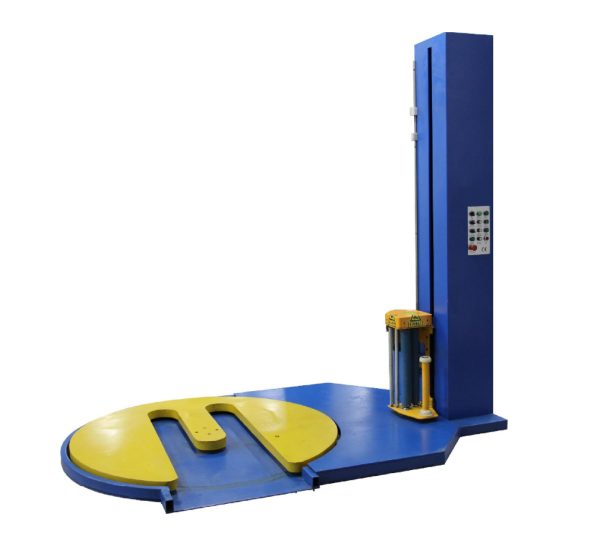

ZK-PS-25AW with anti-stretch system and M-shaped turnplate is suitable for wrapping all kinds of products. Besides, the machine can be customized with top presser, magnetic clutch, SIAT anti-stretch and M-shaped turnplate with different upright stanchion height and turnplate size.
Machine features:
- Suitable for all kinds of products
- M-shaped turnplate is designed for the forklift
- Flexible choices in different working units, stanchion height and turnplate size
- PLC control andtext controller with easy using operation interface and reliable performance quality
- It can preset wrap-mode, parameterand film tension as needed
- Sensor detection for object height
- Black object is in need of a special sensor and special travel switch
- Inverter controlsworking speed
- Soft start and stop function marks machine operation in a stable condition
- High efficiency and energy saving
- Easymaintenance
Basic information:
Power voltage: 1P AC220V 50/60Hz 1.5KW
Speed of turnplate: 0~10r/min
Dia.of turnplate: Φ 1500mm(options:1650/1800,2000/2200mm)
Mast height: H2400mm(options :2000/2400/2700/2900 /3000
3100/3200/3400mm)
Width of forklift mouth: 600mm
Deriction of forklift mouth: Option
Groove width: 200mm
Film: LLDPE film, width≤500mm
Outer diameter≤280mm
Capacity: 1500kg
Max wrapping height: Mast height -400mm
Package size: L2650 xM1650 xH800mm
G.W/N.W: 750kg/700kg
Noise : ≤75DB
Environment humidity: ≤ 98%
Temperature: -10~40oC
Working process:
- Put the object onthe turnplate
- Connect the film with the surface of the object
- Start the machineand it will wrap the object automatically
- Cut the film manually while the wrapping is finished
