INTRODUCTION

Tape break alarm saves time, efficient 12 cartons/min .

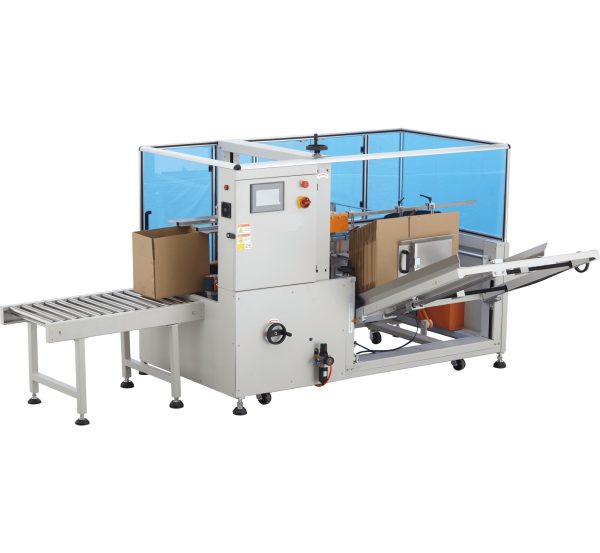

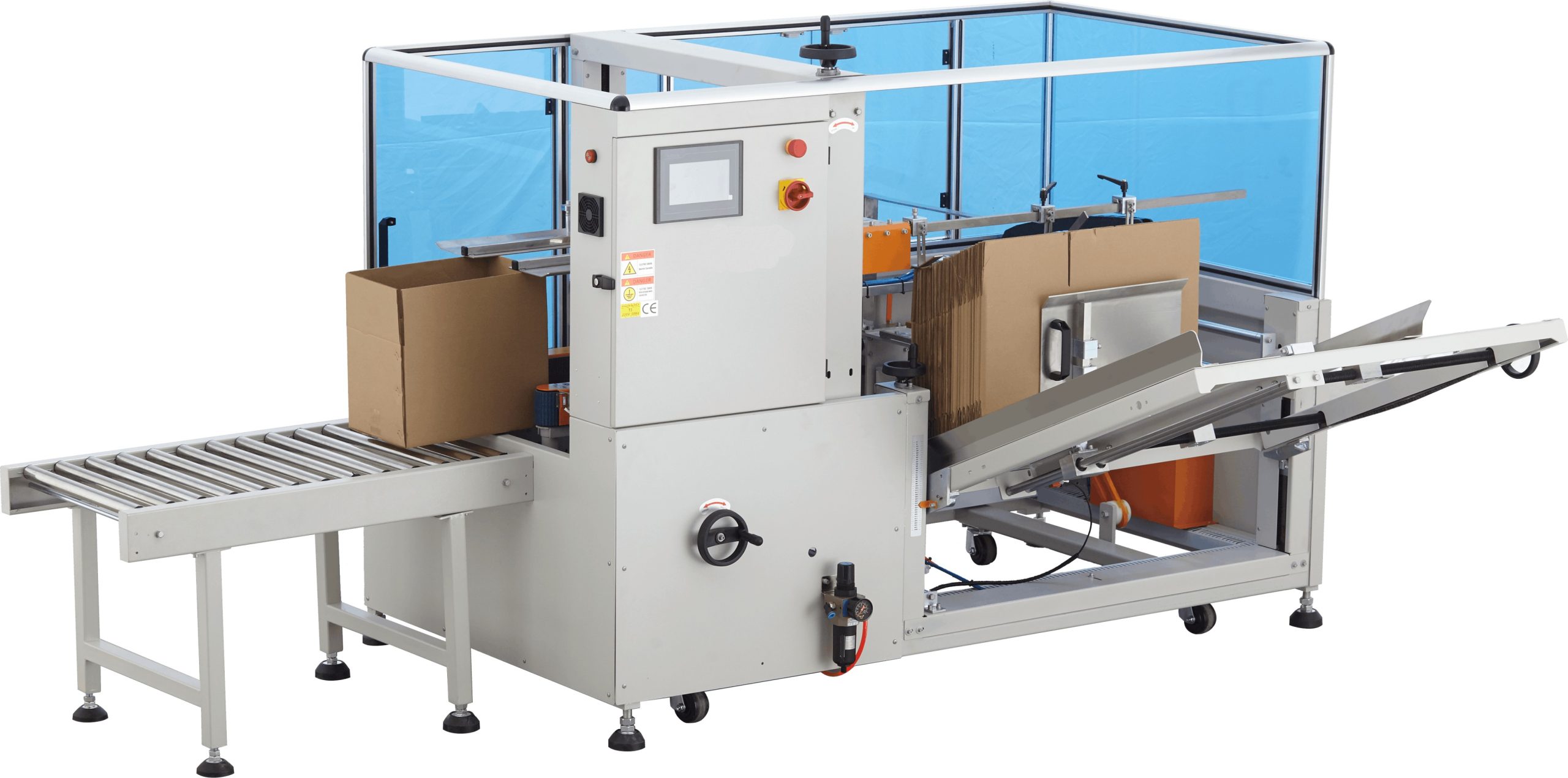

ZKK-40E is a new generation of self-produced and designed products of our company. According to the market demand, the new version is equipped with a protective door in the area where the tape is replaced. The tape can be changed after opening the door, which is more convenient and worry-free. The machine adopts a strict production process, and the vertical opening the carton speed reaches 12 cartons/min, the carton is absorbed and formed, and the automatic alarm prompt function of broken tape and no tape is added. This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

CHARACTERISTICS

Quickly change the tape Install the tape head protection door device, and the tape can be changed after opening the door, which is convenient and fast;

Durable parts Use durable parts, electrical components and pneumatic components;

Can be used together It can be used on a stand-alone machine or with an automated packaging line.automated packaging lines

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

More safety An alarm for broken tape is installed, and the door is automatically stopped to avoid accidental operation. when open the door.

PARAMETERS

Model: ZKK-40E Parameters
Carton Opening Speed 8-12 cartons/min
Carton Size L250-450×W150-400×H100-400mm(Min and Max cannot exist at the same time
Power Supply  220V 50/60Hz 1 Phase
Power  200W
Adhesive Tape Width  48/60/75mm
Carton Storage Quantity  80-100pcs (800-1000mm)
Air Consumption  450NL/min
Air Compressing  6kg/cm³
Table Height  600+30 mm
Machine dimension  L2100×W2100×H1450mm
Machine Weight  450Kg

MACHINE DETAILS

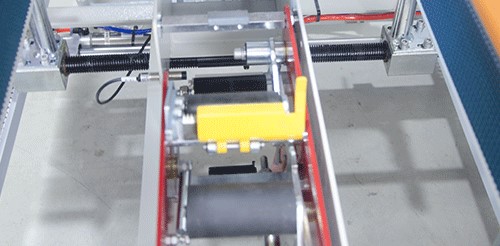

–Quickly change the tape

Install the tape head protection door device, and the tape can be changed after opening the door, which is convenient and fast

–Push box plate automatic buckle

The cartridge fixing bracket adopts the automatic buckle of the push box plate to lock the cartridge plate, which is convenient for users to use

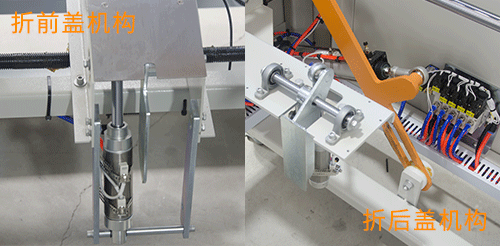

–Folding front and rear flaps mechanism

Improvement and upgrade of the folding front and rear cover mechanism, the carton forming is more smooth, stable and durable

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Automatic alarm for broken tape and no tape

No tape or broken tape will automatically sound an alarm, which is convenient for users to replace and adjust in time, saving time

–Horizontal cartridge optional

–Support multi-specification carton erecting Open width as small as 150 mm

CONFIGURATION

Name Brand
Motor GPG
PLC Siemens
Touch Screen MCGS
Pneumatic Components Taiwang AirTAC
Photoelectricity Germeny LEUZE

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
