Description

ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials used and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

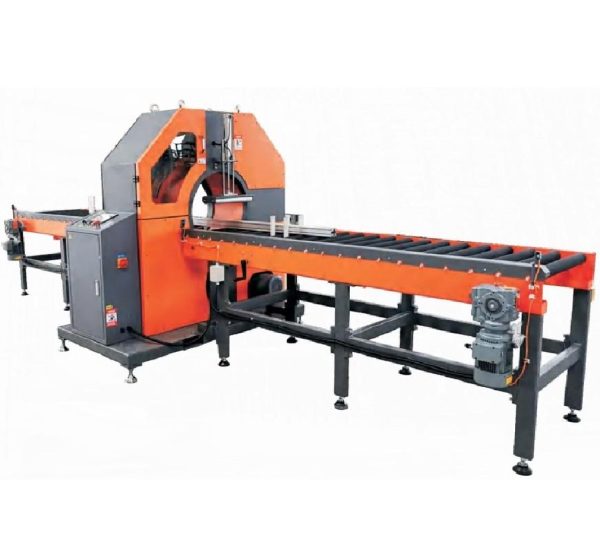

Based on current wrapping machines,ZONGKI has designed a new type stretch wrapper-Orbital stretch wrapper ZK-PS-25T. It is suitable for long and cylindrical products.

Machine features:



  • CE certification
  • Belt driven rotation unit
  • Manually clamp, cut and weldfilm
  • Pushbutton controls the start and stop of wrap cycle
  • PLC control and LCDoperation with easy using operation interface and reliable performance quality
  • Itcan preset wrap-mode ,parameter and film tension as needed
  • Inverter controlsworking speed
  • Soft start and stop function marks machine operation in a stable condition
  • High efficiency and energy saving
  • Easymaintenance





Basic information:



Power voltage: 1P AC220V/110V 50/60Hz 0.5KW

Speed of film ring: 0~100r/min

Air consumption: 0.4~0.6 MPa

Film Width: Option: 76mm (3”), 102mm (4”), 127mm (5”)

Film thickness: 19~35 micron

Film Roll Diameter: Inner core: Φ76 mm

Outer core: Φ100~Φ200 mm

Size of Round products: Min diameter 102mm, Max diameter 330mm

Size of square: Min width 102 mm, Min height 50 mm

(Or rectangular products) Max width 560 mm

Max rectangle diagonal 530 mm

Wrapping length: 300~∞mm

G.W/N.W:   380kg/350kg

Optional parts: Pneumatic top pressure roller

Touch screen

Noise: ≤75DB

Environment humidity: ≤ 98%,

Temperature: -10~40oC

Packing size: L1300 x W1350 x H1650mm



Working process:



  1. Put the object inthe ring
  2. Pull and place film in clamp
  3. Set number of wraps on panel,then start the machine, it will wrap around the wrap the object automatically
  4. After the wrapping operation finished, take away the objector output by conveyor
