Description
ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials used and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

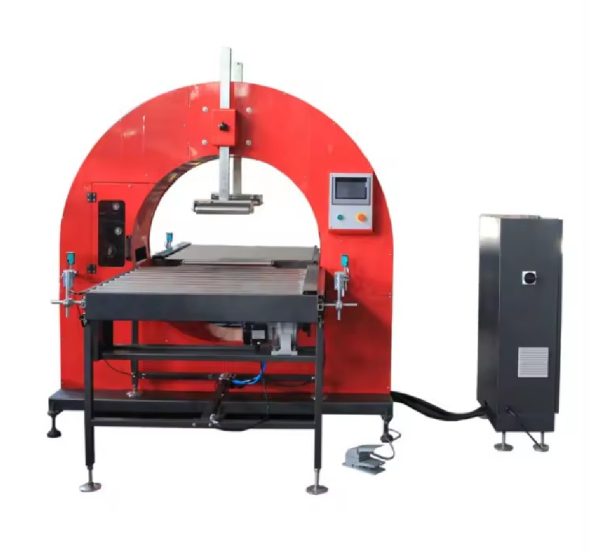

Based on current wrapping machines, ZONGKI has designed a new type stretch wrapper-Orbital stretch wrapper ZK-PS-30T. It is suitable for long and cylindrical products.
Machine features:
- CE certification
- Belt driven rotation unit
- Cylinder cut film
- Pushbuttoncontrols the start and stop of wrap cycle
- PLC control and LCD operation with easy using operation interface and reliable performance quality
- Itcan preset wrap-mode ,parameter and film tension as needed
- Inverter controlsworking speed
- Soft start and stop function marks machine operation in a stable condition
- High efficiency and energy saving
- Easymaintenance
Basic information:
Power voltage: 1P AC220V/110V 50/60Hz 0.6 KW
Speed of film ring : 0~100r/min
Air consumption: 0.4~0.6 MPa
Film cut: Blade
Film Width: Option: 76mm (3), 102mm (4”), 127mm (5”)
Film Roll Diameter: Inner core Φ76 mm
Outer core Φ100 ~ Φ200 mm
Size of Round products: Min diameter 102mm
Max diameter 330mm
Size of Square: Min width 102 mm, Min height 50 mm
(Or rectangular products) Max width 560 mm
Max rectangle diagonal 530 mm
G.W/N.W: 380kg/350kg
PLC: Siemens
Option: Pneumatic top pressure roller and touch screen
Noise: ≤75DB
Environment humidity: ≤98%
Temperature: -10~40oC
Packing size: L1300 x W1350 x H1650mm
Working process:
- Put the object inthe ring
- Pull and place film in clamp
- Set number of wraps on panel,then start the machine, it will wrap around the wrap the object automatically
- After the wrapping is finished, take away the objector output by conveyor
