Description
Technical specifications of roller/chain/flat chain conveyor for pallet
Roller Conveyor:
Basic information:
Rollers diameter: Ø 76mm.(if roller type)
Axles diameter: Ø 15mm
Conveyor length: 1500mm (2000mm, 2500mm)
Conveyor width: 1380mm, 1480mm, 1580mm, 1680mm
Can be customized
Conveyor height: 450, 500, 550,650mm Can be customized
Loading weight: 1500 kg
Power: 0.75KW or 1.5KW
Transport speed: Standard 22.1:1 = 16 m/min.other reducers are available. can be selected to meet customer’s requests. Inverter can be used to control speed.
Conveyor material: carbon steel, 304 Stainless steel as option
Motor: SEW
Chain Conveyor:
Basic information:
Quantity of chain: 2pcs or 3pcs
Chain type: 10A-2
Conveyor length: 1500mm (2000mm, 2500mm)
Conveyor width: 1000mm, 1100mm, 1200mm, 1300mm, 1400mm
Can be customized
Conveyor height: 450, 500, 550,650mm Can be customized
Loading weight: 1500 kg
Power: 0.75KW or 1.5KW
Transport speed: Standard 22.2:1 = 17 m/min.other reducers are available. can be selected to meet customer’s requests. Inverter can be used to control speed.
Conveyor material: carbon steel, 304 Stainless steel as option
Motor: SEW

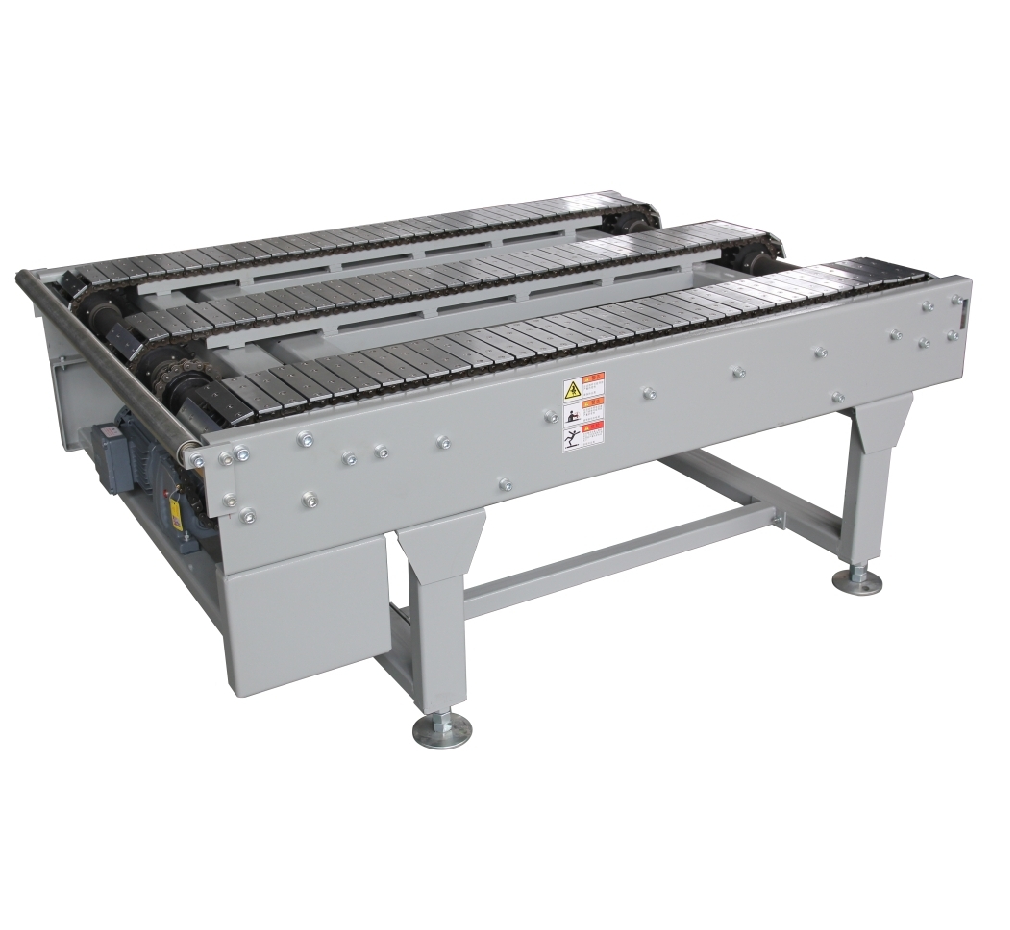

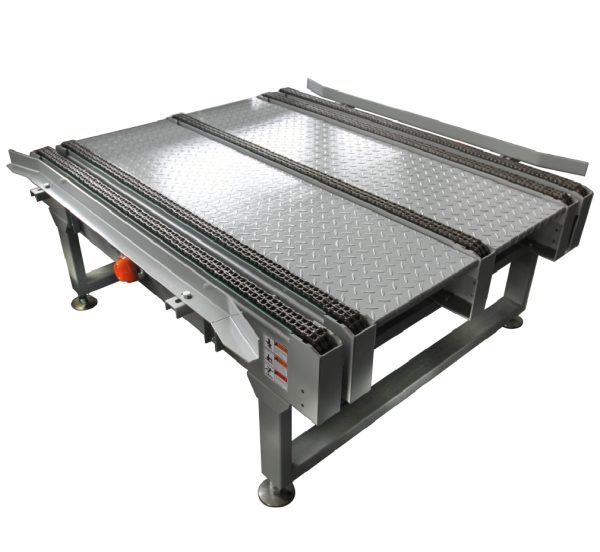

Flat Chain Conveyor:
Basic information:
Quantity of chain: 2pcs or 3pcs
Chain type: 12A
Conveyor length: 1500mm (2000mm, 2500mm)
Conveyor width: 1000mm, 1100mm, 1200mm, 1300mm, 1400mm
Can be customized
Conveyor height: 450, 500, 550,650mm Can be customized
Loading weight: 1500 kg
Power: 0.75KW or 1.5KW
Transport speed: Standard 22.2:1 = 17 m/min.other reducers are available. can be selected to meet customer’s requests. Inverter can be used to control speed.
Conveyor material: carbon steel, 304 Stainless steel as option
Motor: SEW
