Description
Descriptions:
ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

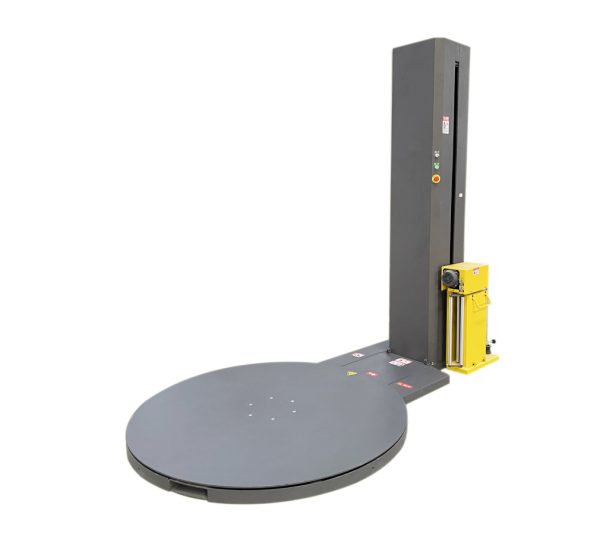

ZK-PS-20P with pre-stretch system is suitable for wrapping all kinds of products. Besides, the machine can be customized with top presser, magnetic clutch, SIAT anti-stretch and M-shaped turnplate with different upright stanchion height and turnplate diameter.
Machine features:
- CE certification
- Suitable for all kinds of products, particularly for heavy products
- Flexible choices in different working units, stanchion height and turnplate diameter .
- PLC control and text controller with easy using operation interface and reliable performance quality
- It can preset wrap-mode, parameter and film tension as needed
- Sensor detection for object height
- Black object is in need of a special sensor and special travel switch
- Inverter controls working speed
- Soft start and stop function marks machine operation in a stable condition
- High efficiency and energy saving
- Easy maintenance
Basic information:
Power voltage : 1P AC220V 50/60Hz 1.0KW
Speed of turnplate : 0~10r/min
Dia.of turnplate : Φ 1500mm(options:1650/1800,2000/2200mm)
Mast height : H2400mm(options :2000/2400/2700/2900 /3000
3100/3200/3400mm)
Film : LLDPE film, width≤500mm
Outer diameter≤280mm
Capacity : 1500kg (2000kg can be customized)
Max wrapping height : Mast height -400mm
Package size : L2650xW1650xH800mm
G.W/N.W : 750kg/700kg
Noise : ≤75DB
Environment humidity : ≤ 98%,
Temperature : -10~40oC
Working process:
- Put the object onthe turnplate
- Connect the film with the surface of the object
- Start the machine, the machine will automatically run and wrap the object.
- Cut the film manually while wrapping is finished
