Description

ZONGKI has years of experience in manufacturing stretch wrappers. The quality of all materials and the high technical standards for all mechanical and electronic components combined with highly efficient and precise assembling and testing procedures lead to high performance, safe and durable products.

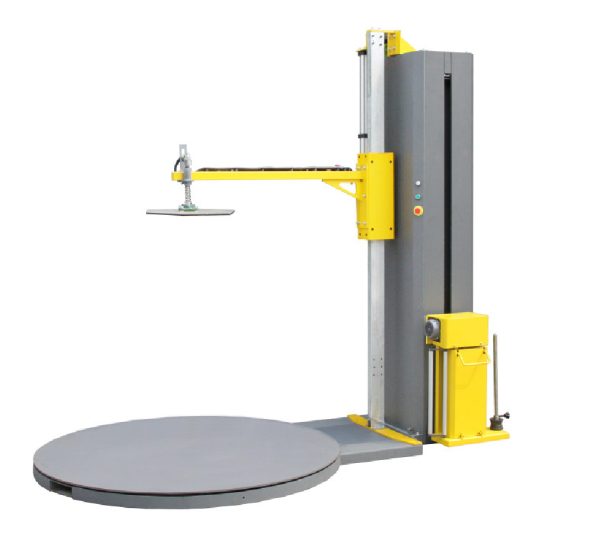

ZK-PS-20PT with pre-stretch system and top presser is suitable for wrapping all kinds of products. Besides, the machine can be customized with top presser, magnetic clutch, SIAT anti-stretch and M-shaped turnplate with different upright stanchion height and turnplate size.

Machine features:



  • CE certification
  • Suitable for all kinds of products, particularlyfor light products
  • Flexible choices in different working units, stanchion height and turnplate size
  • With top presser (cylinder type), the product can be hold stably
  • PLC or PCB control andtext controller with easy using operation interface and reliable performance quality
  • It can preset wrap-mode, and parameteras needed
  • Sensor detection for object height
  • Black object is in need of a special sensor and special travel switch
  • Inverter controlsworking speed
  • Soft start and stop function marks machine operation in a stable condition
  • High efficiency and energy saving
  • Easymaintenance



Basic information:



Power voltage: 1P AC220V 50/60Hz 1.0KW

Speed of turnplate: 0~10r/min

Dia.of turnplate: Φ 1500mm (option: 1650/1800/2000/2200mm)

Mast height: H2400mm(option: 2000/2400/2700/2900/3000/ 3100/ 3200/ 3400mm)

Top presser: pneumatic type or chain type

Film: LLDPE film, width≤500mm

Outer diameter≤280mm

Capacity: 2000kg

Max wrapping height: Mast height -400mm

Package size: L2650 xW1650 xH800mm

G.W/N.W: 800kg/750kg

Inverter: French Schneider

Noise: ≤75DB

Environment humidity: ≤98%

Temperature: -10~40oC



Working process:



  1. Put the object onthe turnplate
  2. Connect the film with the surface of the object
  3. Start the machineand it will wrap the object automatically
  4. Cut the film manually while the wrapping is finished
