Standard capacity: 2000~2500 sachets/hour (it depends on filling materials)

Filling volume: 120 ~ 1000ml

Category:

Description

Basic information

Standard capacity: 2000~2500 sachets/hour (it depends on filling materials)

Filling volume: 120 ~ 1000ml

Filling material: Liquid or semi liquid (for example: fresh milk, yogurt beverage, juice, pure water, beverage, sauce, low consistency jam, oil etc)

Percent of pass: ≥99.5%

Total power: 5 KW

Air pressure: ≥0.6MPa

Air consumption: ≥0.9 m³/min

Power supply: 3+N+PE  50Hz  380/220V±10% (3 phase 5 wire)

Outer dimensions (appr): 1200mm×1400mm×2100mm (L×W×H)

Weight (approx): 2000Kg

Air purification: by oil filter



Applicable packaging material

Material of sachet: opp/al/pe, pet/vmpet/pe etc.

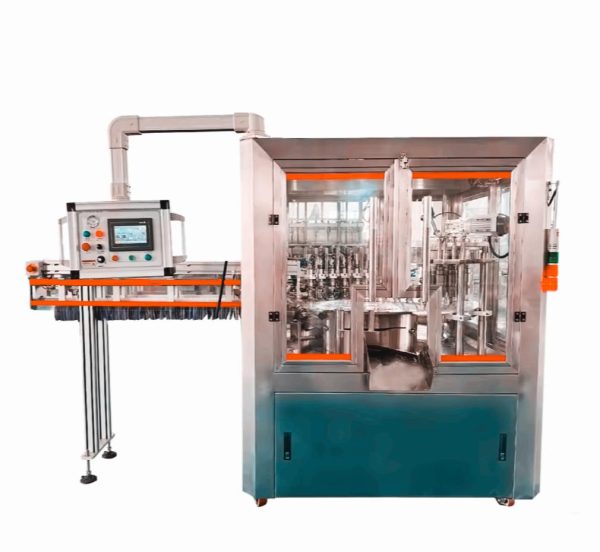

Introduction of the equipment

Main technical process:

  • Filling head presses the sachet – suck out the remaining air in sachet – filling – put cap on sachet – screw cap (pneumatic)

Turntable and traction system:

  • Drive by inverter
  • Mechanical drive system
  • Turntable
  • Framework and safety guard

Bagging system:

  • Sachet magazine
  • Automatic sachet feeding system
  • Bagging system
  • Detection sensor for bagging

Filling system:

  • Pressure & capacity quantitative system
  • Filling system
  • Cleaning system
  • CIP cleaning interface

Capping system:

  • Sensor detection
  • Cap magazine
  • Cap sorting device
  • Cap putting slide way

Screw cap system:

  • cap swivel head
  • drive system to control up-and-down motion of swivel head

Outputting system

  • mechachnical and pneumatical transmission
  • output conveyor at exit

CIP cleaning system, material cylinder body and liquid level control system:

  • pneumatic conversion valve
  • CIP cleaning accessories
  • stainless steel material cylinder body

Control system:

  • PLC control
  • HMI system (touch screen)
  • Air & electric protectionsystem
  • Troublealarm with warning information
  • Safety protection

Material:

  • 304 stainless steel machine framework
  • Other parts are in stainless steel and meet food industry requirements
