Double-column folding flaps sealing performance is more stable L:20-60cm W:15-50cm H:15-50cm .

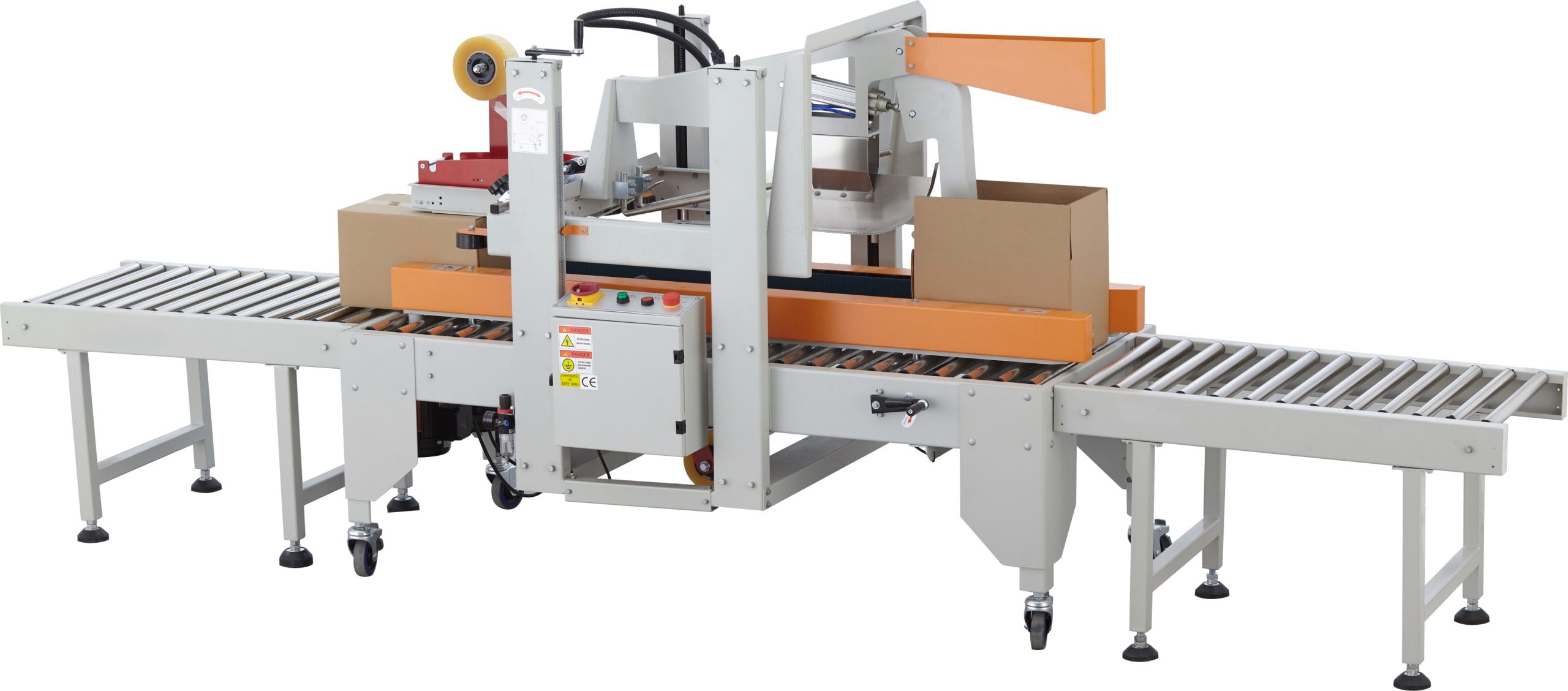

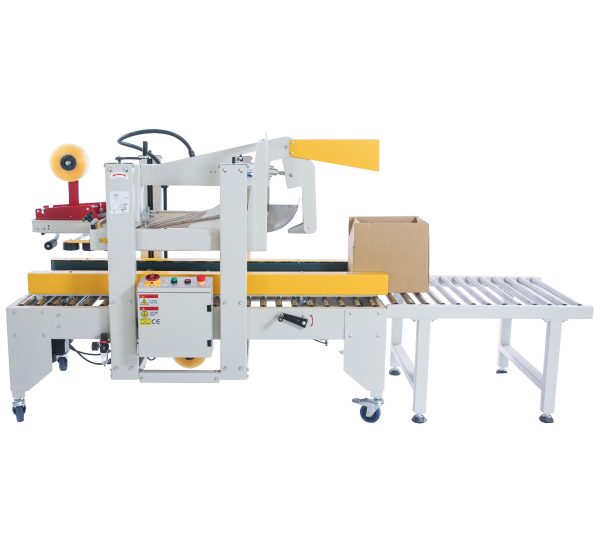

Semi-auto Flaps Folding Carton Sealer is a product optimized and upgraded on the basis of the single-column flaps folding carton sealer.

Category:

Description

INTRODUCTION

Double-column folding flaps sealing performance is more stable L:20-60cm W:15-50cm H:15-50cm .

Automatic Flaps Folding Carton Sealer is a product optimized and upgraded on the basis of the single-column flaps folding carton sealer. The double-column obviously reflects the firmness and stability of the machine, so that the folding arm will not shake, and the decibel of the noise is greatly reduced. In addition, an independent electric box control system is added, which is more convenient to operate and has a high safety factor. At the same time, the double-column can also add the upper drive system according to the customer’s product characteristics. This carton sealer is widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.

CHARACTERISTICS

Adjusting height and width Manually adjust the width and height of the machine according to the carton specifications, suitable for carton sealing of the same specification at the same time;

Carton sealing beautiful Pneumatic sealing, fast and beautiful;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Improve efficiency Sable carton sealing speed, higher efficiency;

Simple operation Simple operation panel, economical, durable, safe and low failure rate.

PARAMETERS

Model  ZKC-450
Conveyor Speed  18m/min
Carton size range L:200-600mm  W:150-500mm  H:150-500mm
Power supply  110/220V 50/60Hz 1Phase
Power 400W
Adhesive Tape Width  48/60/75mm
Air Consumption  50NL/min
Air Consumption  0.6Mpa
Discharge table Height 600+120mm
Machine Dimension  L:1770mm  W:920mm  H:1520mm
Machine Weight   270kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

–Stainless steel roller

Durable, no rust, good bearing capacity

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

–Cylinder control

AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
