Pneumatic folding flaps sealing 480 cartons/h

It is composed of an automatic folding flaps sealer and an automatic corner edge case sealer online to form an H-shaped box sealing machine. The top flaps can be automatically folded

Category:

Description

INTRODUCTION

Pneumatic folding flaps sealing 480 cartons/h

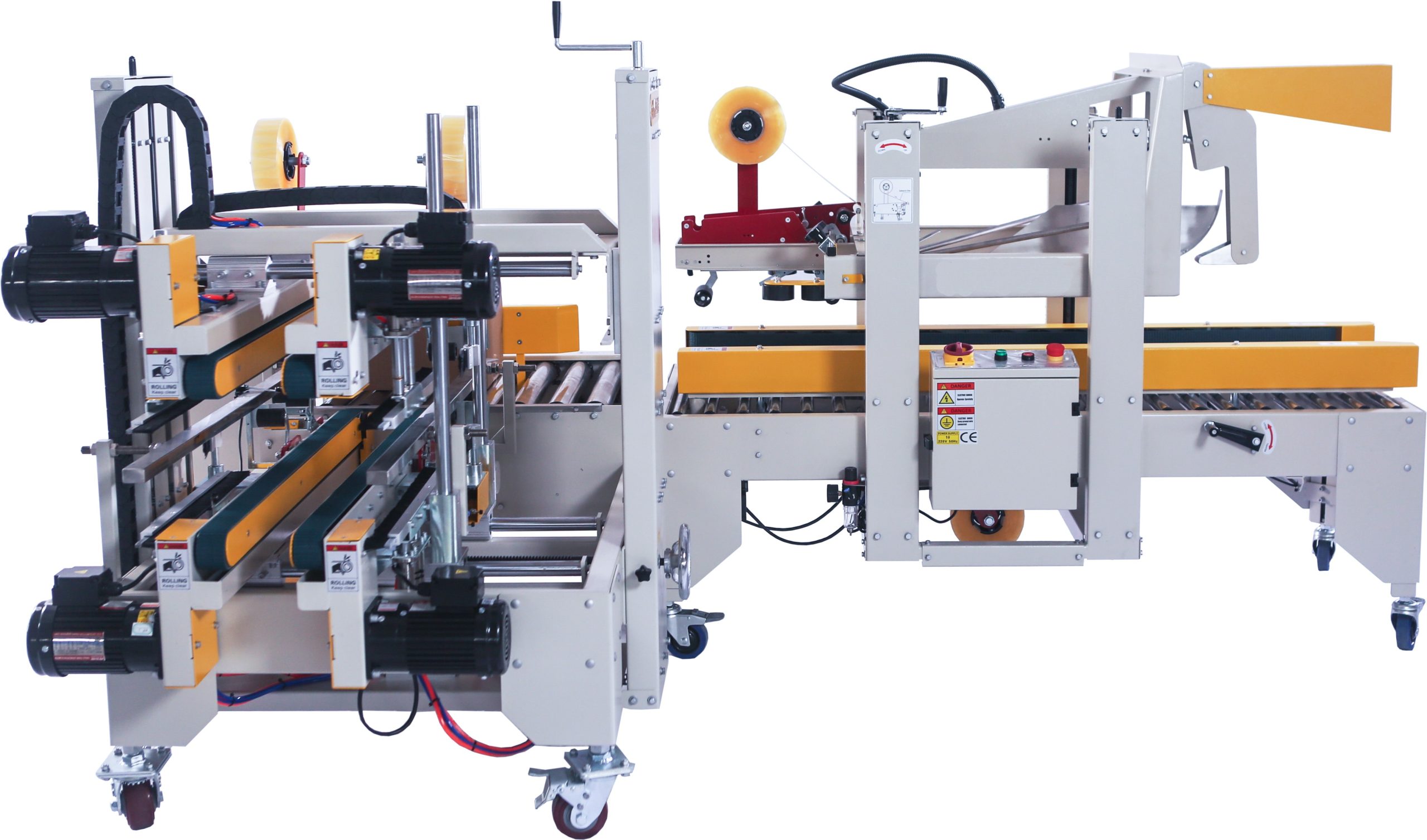

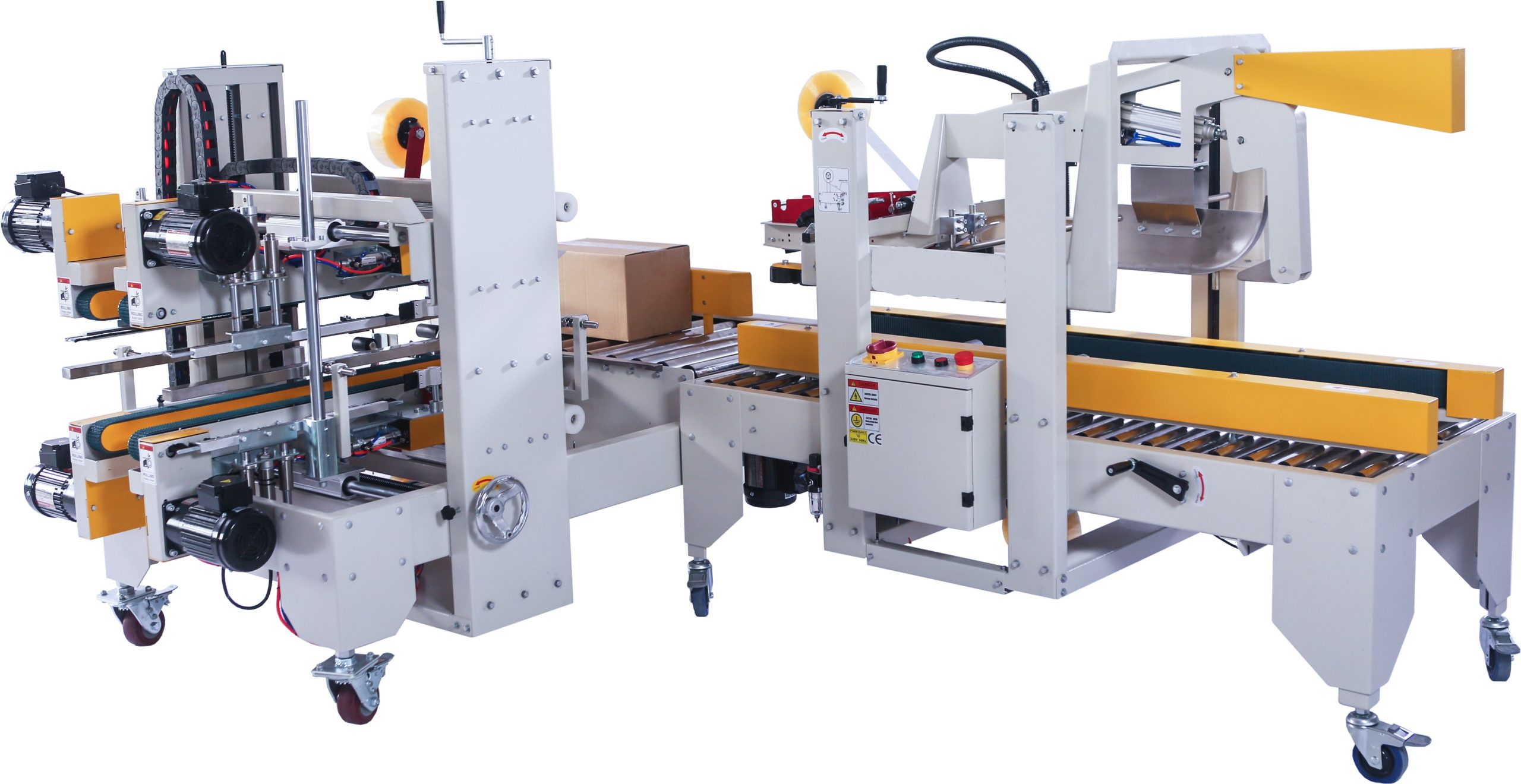

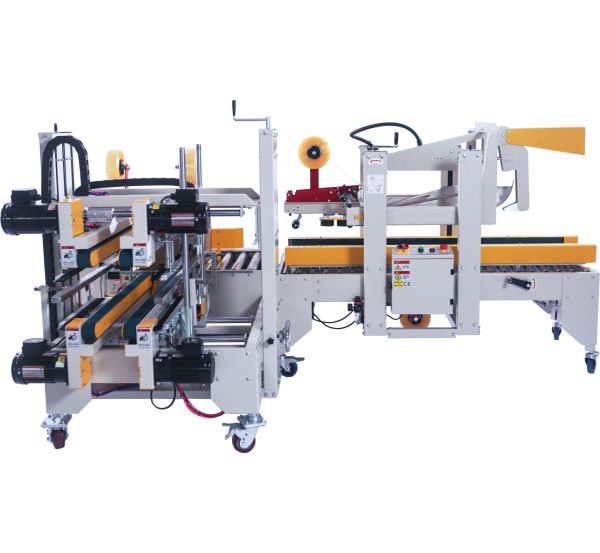

It is composed of an automatic folding flaps sealer and an automatic corner edge case sealer online to form an H-shaped box sealing machine. The top flaps can be automatically folded, and the carton can be conveyed. It is fast and stable when sealing the carton. At the same time, the carton is sealed up and down. When sealing the box, the middle seam is concentrated and not cracked; then it is pushed through the L-shaped carton pusher and transported into the four-corner edge sealing operation. The height of the table and the width and height of the carton can be adjusted independently, which is simple and practical. The parts are stable and durable, the shape is elegant and generous, and the service life is long. The machine frame comes with four high-strength brake casters , which is very convenient for transposition work. Widely used in food, medicine, beverage, tobacco, automobile, cable, electronics and other industries.

CHARACTERISTICS

Adjusting height and width Manually adjust the width and height of the machine according to the carton specifications, suitable for carton sealing of the same specification at the same time;

Carton sealing beautiful Pneumatic sealing, fast and beautiful;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Improve efficiency Sable carton sealing speed, higher efficiency;

High efficiency Belt drive, sealing speed up to 20 cases/min;

Simple operation Simple operation panel, economical, durable, safe and low failure rate.

PARAMETERS

Model  ZKC-450 ZKG-450
Conveyor speed

/carton sealing speed

18m/min 360-480pcs/h
Carton size range  L:200-600mm  W:150-500mm  H:150-500mm L:320-600mm   W:200-500mm   H:180-500mm
Power supply  110/220V 50/60Hz 1Phase  110/220V 50/60Hz 1Phase
Power  400W 1050W
Adhesive Tape Width 48/60/75mmChoose one to use 48/60/75mmChoose one to use
Air Consumption  50NL/min 200NL/min
Air Compressing 0.6Mpa 0.6Mpa
Discharge table Height  600+120mm 600+50mm
Machine Dimention  L:1770mm  W:920mm  H:1520mm L:1900mm  W:1230mm  H:1530mm
Machine weight 270kg 400kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

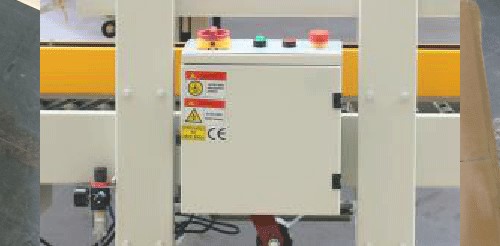

–Independent electrical box

Protect power equipment, keep indoor dry and line safe

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

–Cylinder control

AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Use cost-effective power switches, and the service life of key switches can reach 100,000 times.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.

CONFIGURATION

Name Brand
Motor GPG
Pneumatic Components AirTAC
PLC OMRON
Photoelectricity LEUZE
Limit switch SAFETYMAN

Reminder: Because the product of our company are constantly updated, please refer to the contract and reserved without prior notice, please understand! It can also be matched according to customer needs, welcome to consult customer service staff.
