Description
INTRODUCTION
Corner no crease
Length：32-60cm Width：20-50cm Height：18-50cm

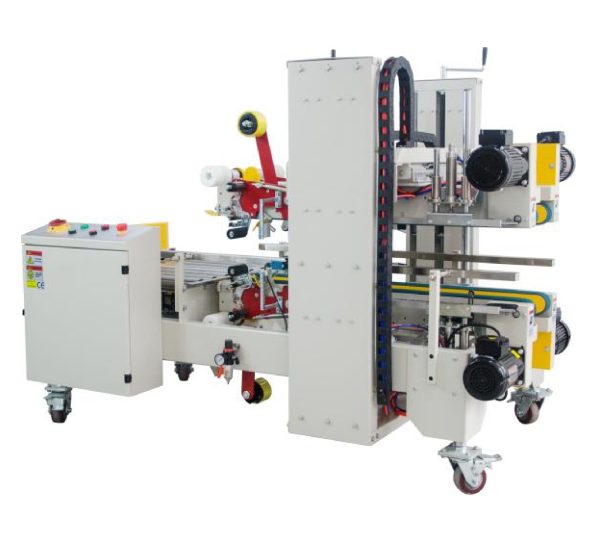

Semi-auto Corner and Side Type Carton Sealer is that the carton is sealed up and down in the middle of the front part of the carton sealer, then enters the 90-degree corner machine, and is pushed into Corner and Side Type Carton Sealer by the push box board.After photoelectric detection, the carton specifications are controlled by PLC, the width and height of the machine can be adjusted independently. Meanwhile, the four corners are sealed, which is characterized by fast sealing speed, no wrinkles in the sealing corners, and automatic sealing and smoothing of the upper and lower corners of the carton at the same time. It is suitable for customers and manufacturers who have higher requirements for external packaging.Widely used in food, medicine, beverage,tobacco, daily chemical, automobile, cable, electronics and other industries.
CHARACTERISTICS
Adjusting height and width Manually adjust the width and height of the machine according to the carton specifications, suitable for carton sealing of the same specification at the same time；
Carton sealing beautiful Pneumatic sealing, fast and beautiful；
Combined with ZKA、ZKB、ZKC to perform “ H ”type automatic carton sealing line;
Save labor The sealing operation of the goods is completed by the machine instead of the labor;
Improve efficiency Sable carton sealing speed, higher efficiency;
Simple operation Simple operation panel, economical, durable, safe and low failure rate.
PARAMETERS
| Sealing speed | 480-600pcs/h |
| Carton size | Length ：320-600mm Width ：200-500mm Height：180-500mm |
| Power supply | 110/220V 50/60Hz 1Phase |
| Power | 1050W |
| Tape size | 48/60/75mm（ choose one） |
| Air consumption | 200NL/min |
| Atmospheric pressure | 0.6Mpa |
| Table size | 600+50mm |
| Machine size | Length ：1900mm Width ：1230mm Height：1530mm |
| Weight | 400kg |
MACHINE DETAILS
–Quick Load Tape Design
The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable and smooth operation of the whole machine.
–Stainless steel roller
Durable, no rust, good bearing capacity
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
–Cylinder control
AirTAC cylinders are used to control the folding mechanism, the packaging is convenient and smooth, which can not only avoid the waste of adhesive tape, but also make the sealing position more accurate.
–Switch
Choose a cost-effective power switch, one-key start, easy to identify.
–Scale ruler
Equipped with a height scale, convenient adjustment.
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
