Description
INTRODUCTION
Double belt conveying is more smooth L:15-∞ W:25-50cm H:15-50cm

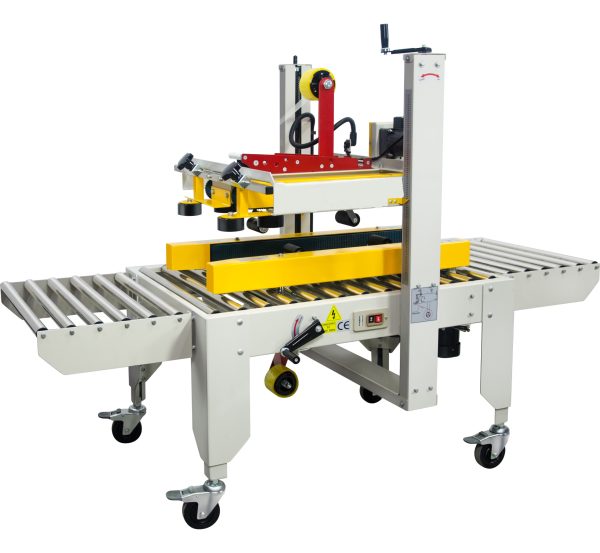

Side and top belt driven carton sealer ZKA-450P adopts sticky tape to seal the carton, which can complete the top and bottom sealing actions at one time, and the sealing effect is neat and beautiful. At the same time, the width and height can be adjusted independently according to the size of the carton, and printing tape can also be used to improve the product image. This case sealer is lightweight and equipped with brake casters for flexible movement. This box sealing machine is widely used in various industries at home and abroad such as food, medicine, toys, tobacco, daily chemicals, electronics and so on.
CHARACTERISTICS
Suitable for light, high cartons .The side and top belt drive carton sealing machine is specially developed for large and heavy cartons to solve the problems of carton warping and tape sticking and skewing;
High efficiency Belt drive, sealing speed up to 20 cartons/min；
Save labor The sealing operation of the goods is completed by the machine instead of the labor；
Simple adjustment The width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient;
More safety The machine is equipped with safety protection measures, and the operation is more assured.
PARAMETERS
| Model | ZKA-450P |
| Conveyor speed | 18m/min |
| Carton Size range | L150-∞×W250-500×H150-500mm |
| Power Supply | 220V 50/60Hz 1Phase |
| Power | 360W |
| Adhesive Tape Width | 48/60/75mm |
| Air Consumption | ⁄ |
| Air Compressing | ⁄ |
| Discharge table Height | 600~720mm |
| Machine dimension | L1020×W900×H1350mm |
| Machine weight | 140kg |
MACHINE DETAILS

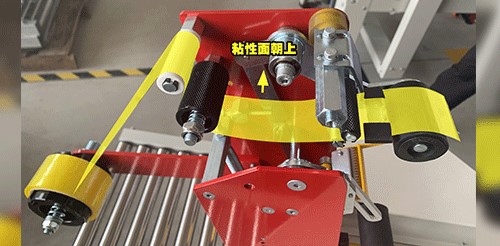

–Quick Load Tape Design
The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.
–Featured configuration, stable and durable
Selected powerful motor to ensure stable and smooth operation of the whole machine.

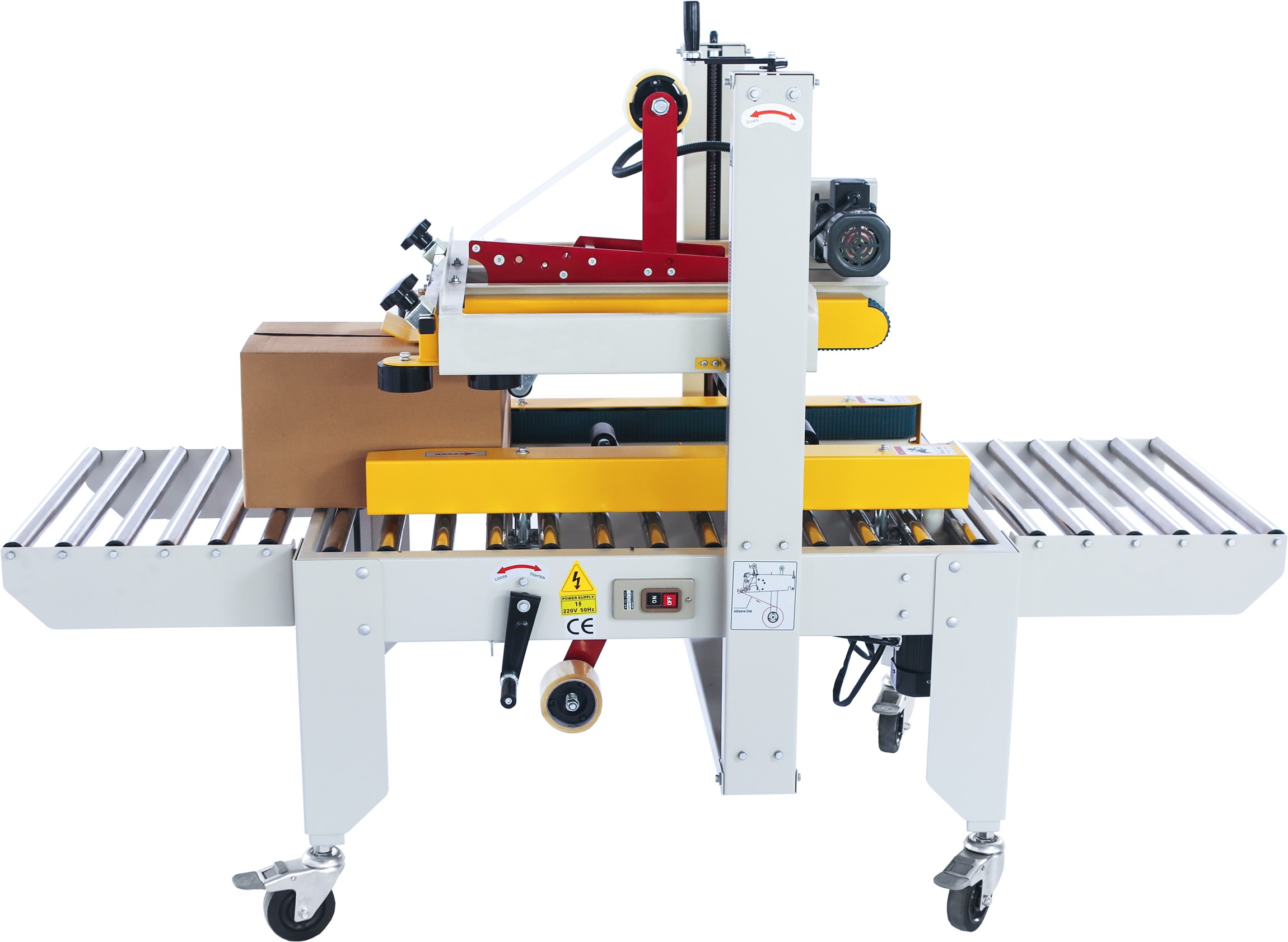

–Support large size carton
The carton sealer specially developed for large cartons, with unlimited length of carton sealing
–Durable conveyor belt
The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.
–Switch
Choose a cost-effective power switch, one-key start, easy to identify.

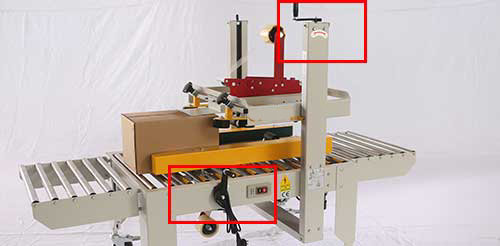

–Scale ruler
Equipped with a height scale, convenient adjustment.
–Width and height can be adjusted independently
The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.
–Sealing effect
Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
