Narrow Carton Sealing L:15cm-L∞ W:15-40cm H:24-60cm

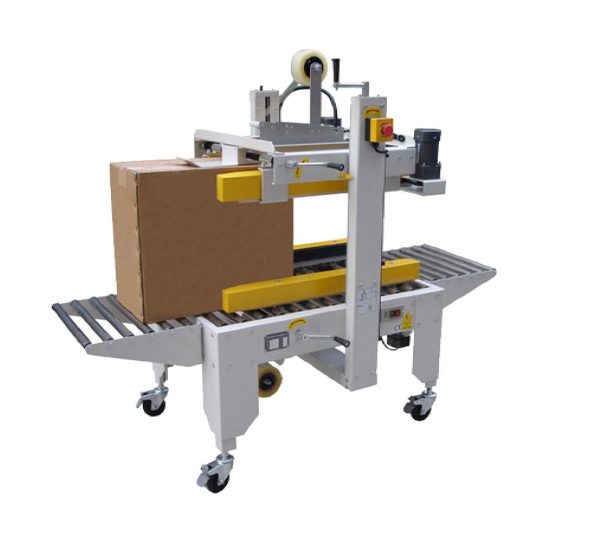

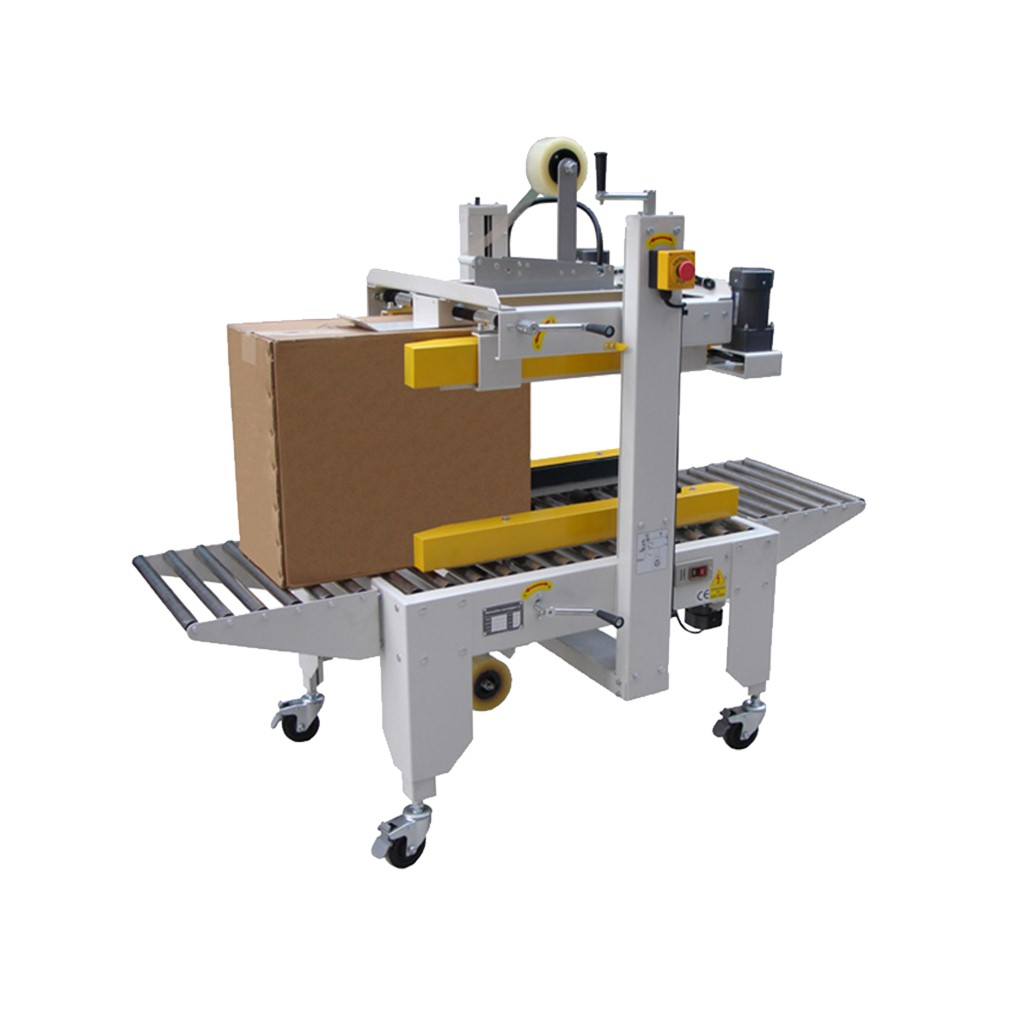

Side Belts Driven Carton Sealer is suitable for narrow carton sealing, it can seal the carton up and down at the same time.

Category:

Description

INTRODUCTION

Narrow Carton Sealing L:15cm-L∞ W:15-40cm H:24-60cm

Side Belts Driven Carton Sealer is suitable for narrow carton sealing, it can seal the carton up and down at the same time. There are four powerful motors on both sides, the belts are automatically corrected, and conveyed the carton, which is fast and stable when sealing, suitable for thinner and taller cartons. The height of the table and the width and height of the cartons can be adjusted independently, which is simple and practical. This carton sealer is widely used in food, medicine, toys, electrical appliances, furniture etc.

CHARACTERISTICS

Suitable for light, high, narrow cartons Up and down belt driven carton sealer specially designed for light, high, narrow cartons, Solve the problem of carton warping and tape sticking skew etc.;

High efficiency Belt drive, sealing speed up to 20 cartons/min;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Simple adjustment The width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient;

More safety The machine is equipped with safety protection measures, and the operation is more assured.

PARAMETERS

Model ZKD-46E
Conveyor Speed  18m/min
Carton Size range L150-L∞  W150-400 H240-600mm
Power Supply  220/380V 50Hz
Power 480W
Adhesive Tape Width  48/60/75mm
Air Consumption
Air Compressing
Countertop Height 600-720mm (Adjustable)
Machine Dimension L1020mm  W880mm  H1500 (Without front and rear roller racks)
Machine Weight  180kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

–Support more specification carton

Specially developed for narrow and heavy and tall cartons,carton length is unlimited ,supporting multi-size cartons.

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
