Description

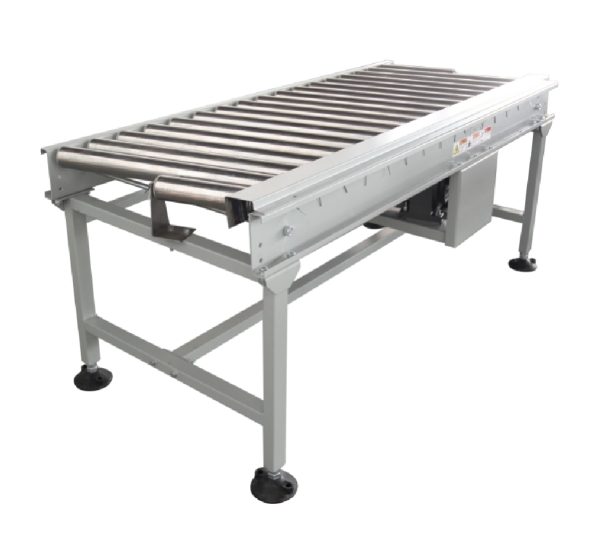

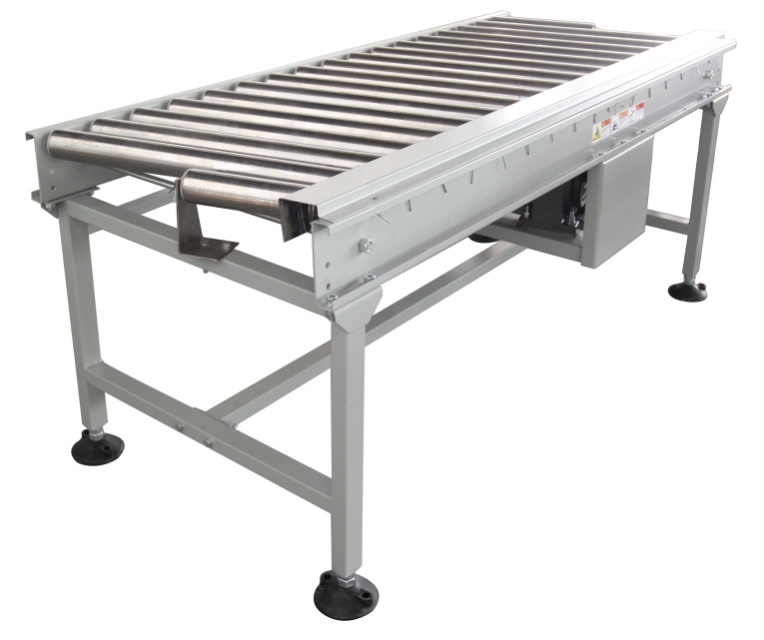

Technical specifications of skew roller conveyor
Basic information:
Rollers diameter: Ø 50mm.
Axles diameter: Ø12mm
Axle distance: 82mm.
Conveyor width: 400, 500, 600 …1500mm.
Conveyor length: 500, 750, 1000, 1500, 2000, 2500 mm.
Conveyor height: 450, 500, 550,650,750
Can be customized
Loading weight: 100 kg/m
Power: 0.4KW
Transport speed: Standard 30:1 = 15 m/min.other reducers are available. can be selected to meet customer’s requests. Inverter can be used to control speed.
Conveyor material: 304 Stainless steel
Angle: 15oC
Motor: SEW
