Description
Machine introduciton

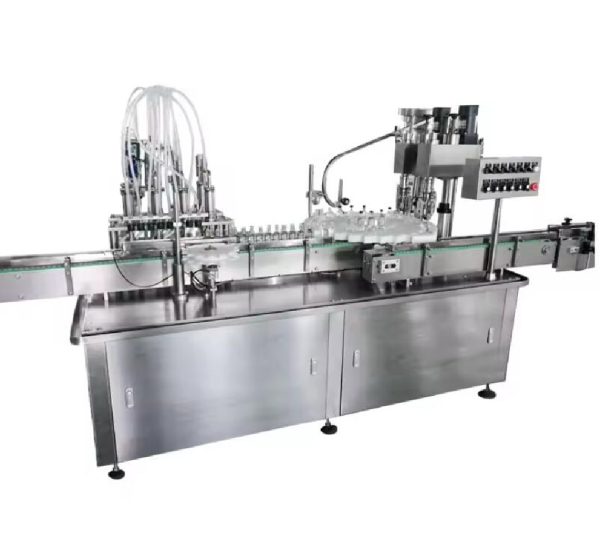

This machine is a liquid filling equipment for 30ml/50ml oral liquid bottles. It can complete the functions of automatic bottle feeding, automatic filling, automatic cap sorting, automatic cap putting, automatic capping, automatic capping and sealing.
This machine uses a conveyor belt to feed bottles and an eight-head plunger pump for servo filling.
After the filling is completed, the conveyor belt takes the bottles into each bottle slot of the equalizing plate. The equalizing plate makes intermittent movements and carries the bottles through the machine. In the capping station, the cap organizer organizes the caps, organizes the messy bottle caps into rows, and enters them into the lower cap guide rail in an orderly manner. The bottles are capped, and then
enter the capping station, and finally capping. The capping is a four-knife type. Two knives roll the lower edge, two knives roll the thread, and the cap is beautiful, and finally the bottles are put out on the conveyor belt.
This machine uses a plunger pump for servo filling. The filling stroke is controlled by a servo motor. The filling amount is accurate and it uses an anti-drip filling head, so there is no worry about dripping during filling. The dosage of bottles of different specifications is easy to adjust on the touch screen. It can be adjusted by pressing the key, and it is very convenient to change bottle specifications and has strong adaptability. The whole machine adopts PLC for full control and touch screen settings, making the equipment more perfect and in line with GMP requirements.
Machine features
1.The filling pump is PERISTALTIC pump. It is easy to clean. It is able to wear and tear. (better tell me you material )
2.The mechanical hands of the machine absorb the stopper and cover with vacuum by rotation of the cam.
3.Capping parts use the transverse torque and automatic slipping unit. So it does not hurt the cover. so the design protects the beautiful of the packaging material.
4.The machine is controlled by touchscreen .
| Applicable specification | customized |
| Production speed | 4~8 filling heads , 2 capping heads 40-50 bottles/min |
| Filling error | ±1% |
| Qualified rate | ≥99% |
| Voltage | 380/220v 50HZ |
| Power | 3.5kw |
| Dimension | 2200*1900*1750mm |
| Weight | 750kg |
