$2,200.00

Narrow carton sealing, do not warp.

The up and down belt driven carton sealer use up and down belt to drive, suitable for sealing light and high cartons; at the same time, the up and down sealing is performed on the carton

Category:

Description

INTRODUCTION

Narrow carton sealing, do not warp.

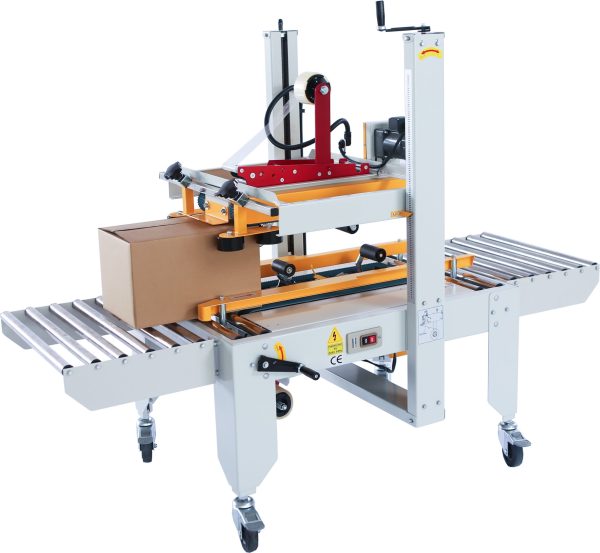

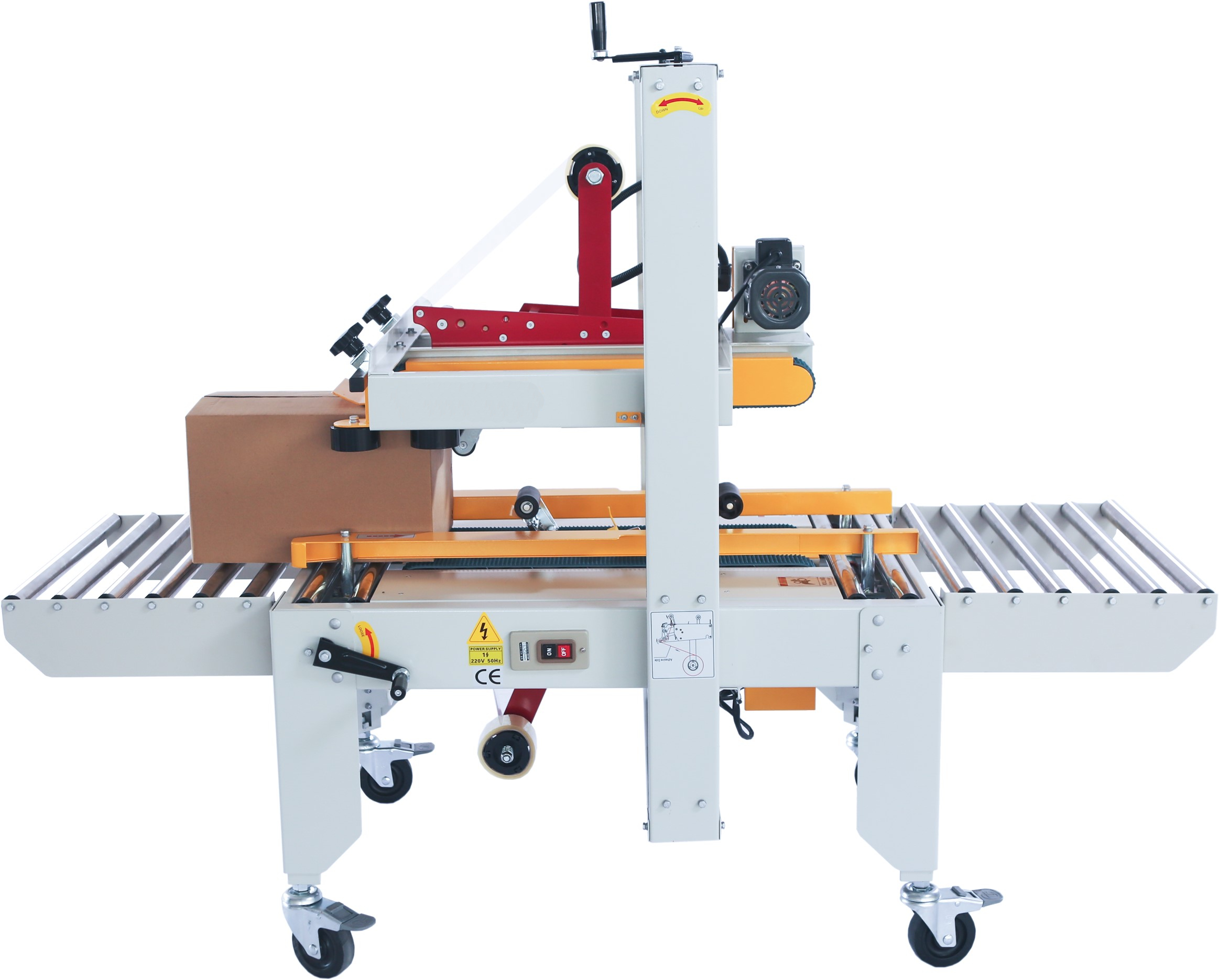

The up and down belt driven carton sealer use up and down belt to drive, suitable for sealing light and high cartons; at the same time, the up and down sealing is performed on the carton, ensure the up and down sealing is stable and fast, and is suitable for lighter, narrower, heavy carton. This box sealing machine is widely used in food, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries.

CHARACTERISTICS

Suitable for light, high, narrow cartons Up and down belt driven carton sealer specially designed for light, high, narrow cartons, Solve the problem of carton warping and tape sticking skew etc.;

High efficiency Belt drive, sealing speed up to 20 cartons/min;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Simple adjustment The width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient;

More safety The machine is equipped with safety protection measures, and the operation is more assured.

PARAMETERS

Model  ZKB-56E
Conveyor speed 18m/min
Carton size range L150-∞×W250-500×H150-600mm
Power Supply  220V 50/60Hz 1Phase
Power 240W
Adhesive Tape Width  48/60/75mm
Discharge table Height 600~720mm
Machine size L970×W835×H1450mm (Without front and rear roller racks)
Machine weight 150kg

MACHINE DETAILS

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured configuration, stable and durable

Selected powerful motor to ensure stable and smooth operation of the whole machine.

–Support more specification carton

Specially developed for narrow and heavy and tall cartons,carton length is unlimited ,supporting multi-size cartons.

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
