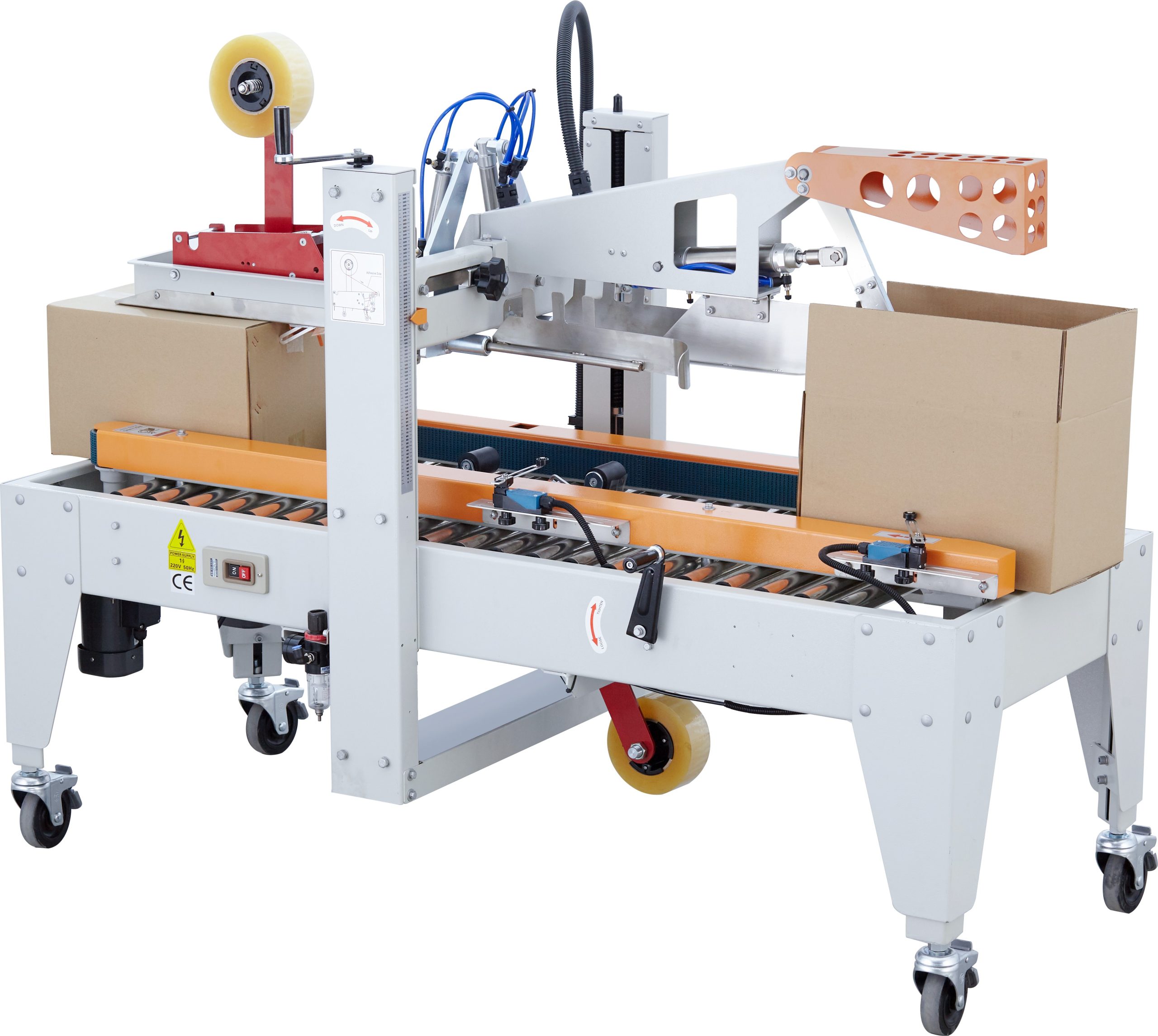

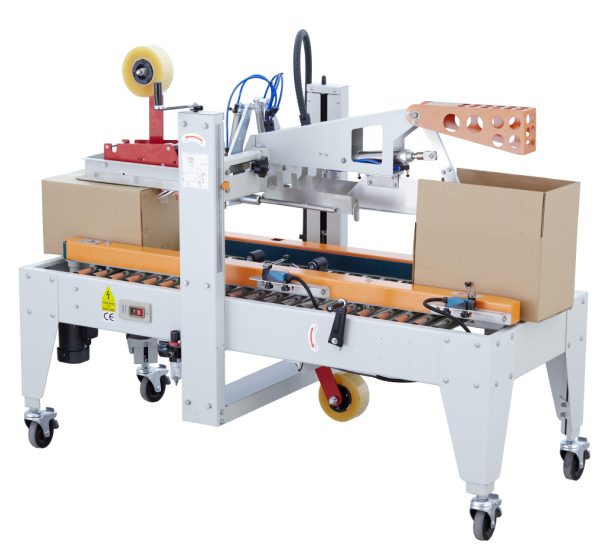

E-commerce small carton automatic flaps folding carton sealer, automatically folds the upper flaps, and automatically attaches tape up and down, without manual work

Category:

Description

INTRODUCTION

Support carton size 7-12 L:13-25cm W:8-20cm H:9-20cm .

E-commerce small carton automatic flaps folding carton sealer, automatically folds the upper flaps, and automatically attaches tape up and down, without manual work; the carton is sealed with instant tape, and the sealing effect is smooth and beautiful. The sealing tape is reserved for 5cm, which can reach 20 boxes, to meet the needs of storage, outbound, transportation and packaging. At the same time, it can be used with labeling machine, weighing machine, strapping machine and winding machine.

CHARACTERISTICS

Suitable for small cartons Small case carton sealer specially designed for e-commerce industry;

Can be used together can be integrated with labeling machine and strapping machine, etc.;

Docking system Can be connected to e-commerce and warehousing system for automatic counting;

Save labor The sealing operation of the goods is completed by the machine instead of the labor;

Simple adjustment The width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient;

More safety The machine is equipped with safety protection measures, and the operation is more assured.

PARAMETERS

Model ZKC-430L
 Packing speed 20 cartons/min
 Carton Size range  L130-250×W80-200×H90-200mm
Power Supply 220V 50/60Hz 1Phase
Power 240W
Adhesive Tape Width 48mm
Air Consumption 50NL/min
Air Compressing 0.6Mpa
Discharge table Height 600+120mm
Machine dimension L1570×W800×H1200mm
Machine weight 200kg

MACHINE DETAILS

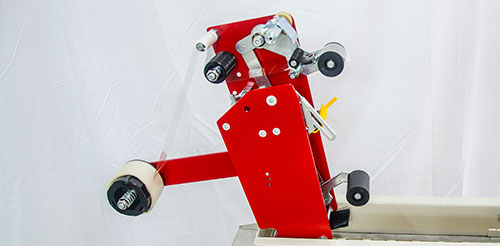

–Quick Load Tape Design

The tape head can be easily removed by simply grasping the tape arm, the tape can be quickly installed in just a few seconds, and the operation is simple.

–Featured durable cylinders

The cylinder body is made of high-precision aluminum alloy cylinder body, the built-in is clean, the sealing is strong, and it is not easy to leak, which ensures the smooth use of the cylinder piston.

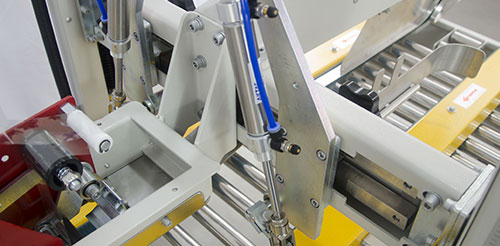

–Pneumatic folding side flaps

The folded cover flaps is controlled by cylinder, and the belts on both sides are automatically conveyed by the motor. The folding and sealing are completed at one time.

–Width and height can be adjusted independently

The width and height can be adjusted manually according to the size of the carton, and the operation is simple and convenient.

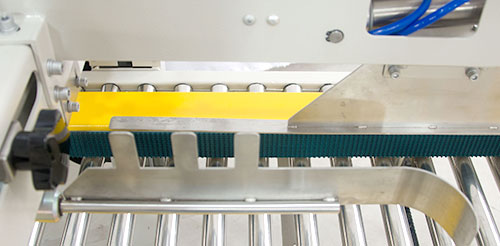

–Durable conveyor belt

The conveyor belt with strong friction is adopted, the material is thick and durable, and the conveying is stable.

–Switch

Choose a cost-effective power switch, one-key start, easy to identify.

–Scale ruler

Equipped with a height scale, convenient adjustment.

–Sealing effect

Adhesive tape to the carton, no skew, no bubbles, beautiful and neat.
