Description

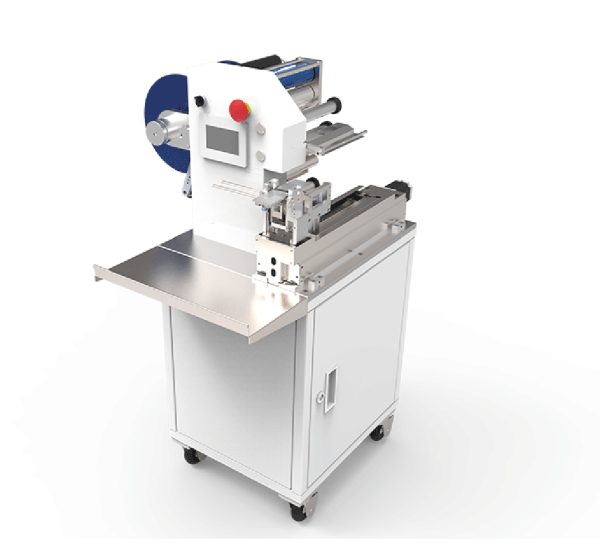

Wire folding and labeling machine
Model: ZK-T107
Product parameter /SPECIFICATION
| Applicable label volume specifications | Inner diameter – 76mm, outer diameter – 240mm |
| Labeling accuracy | ±0.5-1mm(excluding product and label errors) |
| Labeling speed | 1000-1200pcs/H; (Depends on label size and manual speed) |
| Applicable cable diameter range | 4mm-10mm (out of range can be customized) |
| Applicable label specifications | Length: 10mm ~ 45mm (other customizable) |
| Width (folding direction) : 40mm ~ 130mm | |
| Overall size | Approx. 650mm*780mm*1100mm (length, width and height) |
| Applicable power supply | 220V/50HZ; Power 0.25KW |
| Machine weight | About 80kg |
Product introduction /DESCRIPTION
Basic function
◆ This machine uses the folding and labeling method, custom fixture, can be applied to a variety of different specifications of goods folding and labeling;
◆ Used in such as a variety of wire, plastic pipe, clothes rack, knife and fork, lollipop, jelly, disposable dishes affixed to the plane hole hanging label.
Optional function
◆ Barcode printer + computer + software can be selected to paste barcode, two-dimensional code and other information on the label to achieve online printing and labeling function.
◆ You can customize the circle to attach a circle label, you can consult the service.
