Description
Descriptions:

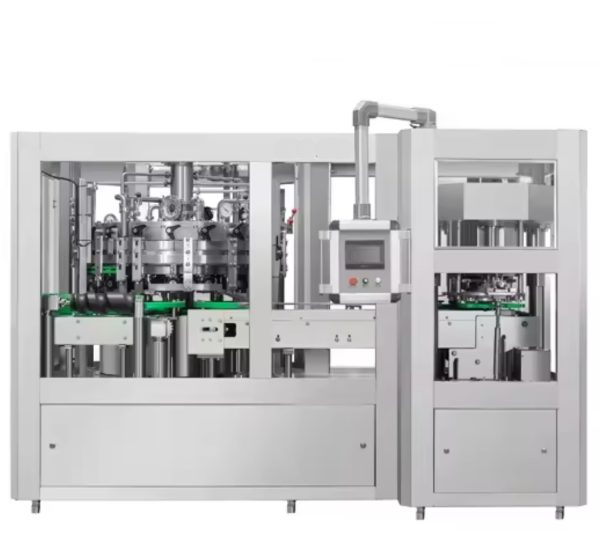

The machine adopts advanced mechanical, electrical and pneumatic control technology, working stable, accurate filling level, attractive appearance, low O2 pickup, low beer lost and convenient maintenance. The machine is beer manufacturer’s ideal equipment.
Basic information:
Capacity 9000 cph ( based on 300ml)
Working type Filler driving force from seamer
Reliability 100%
Single machine production efficiency ≥100%
Inlet and outlet of the direction of can 360 degrees
Overall Size 3610*1980*2350mm
Filler characteristics:
Filling valve: 18
Filling temperature 2-4℃
The maximum CO2 content 5g/L
Filling Pressure (CO2) 0.15-0.4Mpa
Filling method Pressure equalization
Filling valve diameter center Φ1000
Distance between filling valves 326.72mm
Transport cans with height 1250-1400mm
beer bowl up, down regulation system electric
Filling level accuracy ±2mm
Beer loss 1.5%
Exhaust oxygen device CO2 automatic purge of displacement
Filling can loss ≤0.08%( Into the can without damage)
Bearing brand SKF or NSK
Pneumatic Components SMC
Main drive gear SEW or China famous brand
Applicable can type 12oz and 16oz
Height adjustment 85mm-168mm
Lubrication system Centralized lubrication
Weight 2500Kg

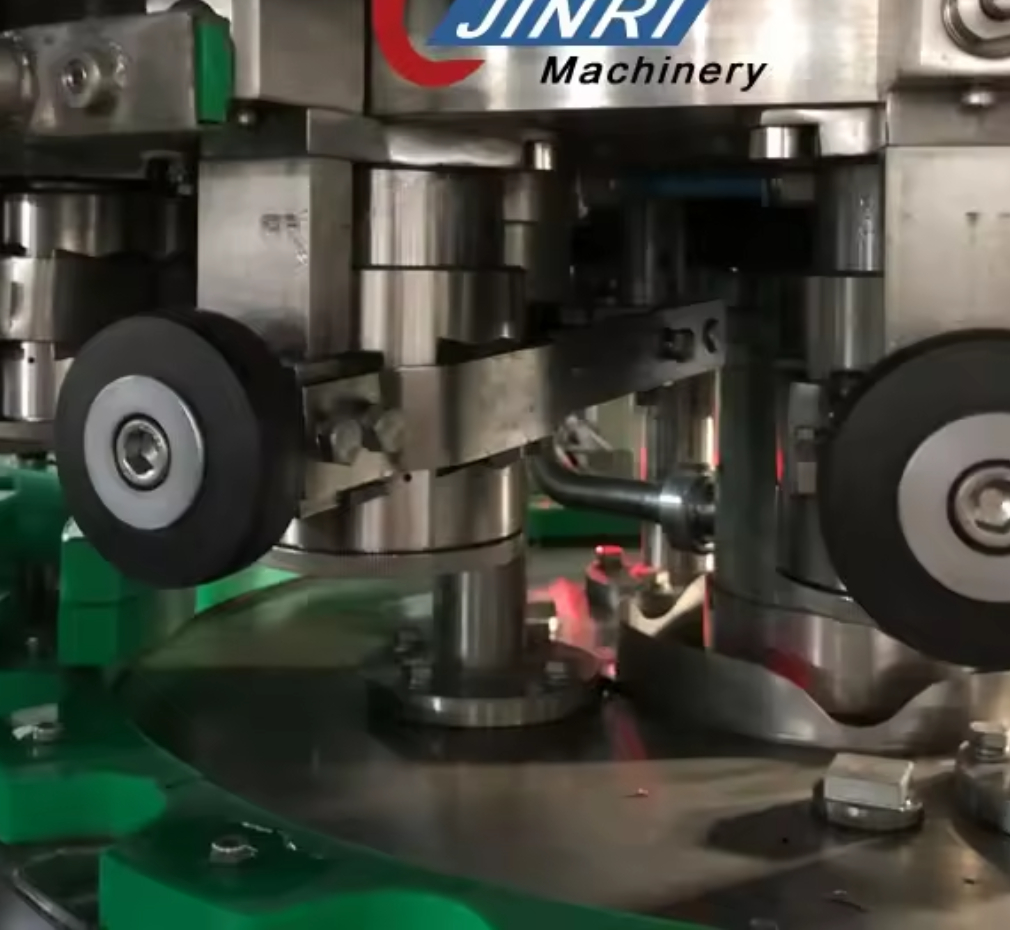

Sealer Characteristics:
Sealing head: 4
Capacity: 9000 cph (based on 330ml)
Can specification Diameter Φ59 ± 0.25 (202)
Diameter Φ64.84 ± 0.25 (206)
Diameter Φ72 ± 0.25 (209)
Chain pitch 304.8 mm
Cupping conveyor chain Stainless steel double chain
Sealing can loss ≤0.05%( Into the can without damage)
Can cap loss ≤0.03%
Bearing brand SKF or NSK
Pneumatic Components SMC or FESTO(Air filter, regulator, lubricator, cylinder and solenoid valves)
Ends Stock 1200
End in-feed type Manual
Rise and fall control system Manual; Hydraulic pressure rise and fall
Exhaust oxygen device Blowing of CO2 and pressure regulation
Compressed air consumption 0.4 nm3/h(0.4 ~ 0.5 mpa)
Co2 consumption ≤2.5 kg/h (100CPM)
Weight 2000Kg
