Description
Descriptions:
ZONGKI wrap around case packer has been designed with high quality and well known for their reputation of reliability and durability. Machine type ranging from low speed wrap around case packer to high speed wrap around case packer can meet different customers’ requirements and productivity level.
ZONGKI has years of experience in manufacturing wrap around case packer. The high quality of all material and strict technical standard for all mechanical and electric components, with high efficiency, precise assembling and rigorous testing procedures, lead to high performance ,safe and durable products.

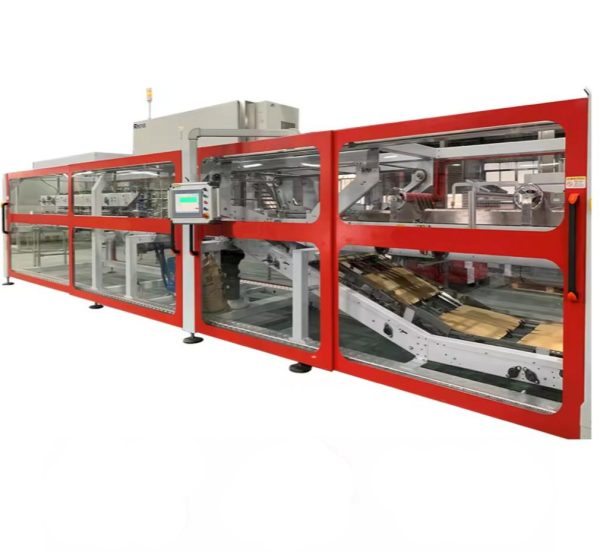

ZK-WR-50T wrap around case packer is designed for packaging regular beverage with high speed requirements.
Machine features:
- This wrap around case packer is suitable for packaging regular beverage with high speed requirements
- Easy to adjust for different bottles with variable bottle height and diameter, package form and carton size
- Servo motor control main engine, PLC control system and Siemens touch screen mark machine operation reliable
- The machine is equipped with safety guard
- The machine will sound alarm if there is no carton magazine
- Speed can be adjusted automatically
- High efficiency and energy saving
- Easy maintenance
Basic information:
Power supply: AC3P 380V±10%/50Hz
Air pressure: 0.4Mpa~0.6Mpa
Control voltage: 24V DC
Bottle size: Provided by user
Case size: Provided by user
Hot glue system: Nordson
Speed: 55 cartons /min(Depends on the products)
Worktable height: Standard 1150mm (Can be customized)
Dimension: L12471 x W1790 xH2562mm
(Depends on the design and factory layout)
lMachine weight: 8 tons (Depends on the design)
Machine configuration: Siemens PLC
Noise: ≤75DB
Environment: Humidity ≤ 98%, Temperature 20~40oC
Working process:
Start the machine->Paper sheet is sucked by sucker from the temporary storage to the lower working station->Meanwhile, the products is conveyed to the paper sheet->The paper sheet is formed as a carton for products->Seal the carton with hot glue->Output the packed products
